Details
| 1.Compressor | 9.Temperature sensor |
| 2.Cooled condenser | 10.Water tank |
| 3.Drier filter | 11.Pressure gange |
| 4.Expansion valve | 12.Pump |
| 5.Evaporator | 13.Pressure relieve valve |
| 6.Globe valve | 14.Low pressure controller |
| 7.Antifreezing switch | 15.High pressure controller |
| 8.Float switch | 16.Fan |

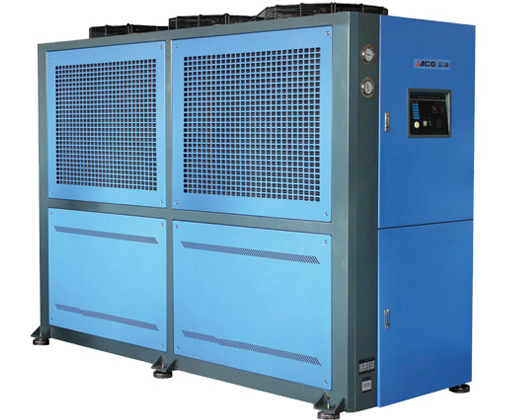

·Chiller-water
Performance characteristic
·The series machine can cool the water ranging from 5 to 35℃,The
much cooler can be customized as per customer’s needs.
·The micro computer controls the system rnning and the temperature
can be precise to 1℃.
·The overload prtection device is used for compressor and pump to
prolong the service life.
·The multi protection device(antifreeze protection,high and low pressure
protection and flow protction)ensures the system safety.
·The water tank is made from the atainless steel and has a heat insulation
layer.Freeze piplines have the insulation layer to improve to improve
freeze efficiency.
·low speed and noise blower fan.
·The blower fan stops along with the compressor.thus effecive electric
energy saving.
Type | Technical Parameters of Air Cooling |
Model | MH-2AD | MH-3AD | MH-5AD | MH-6AD | JC-8WD | JC-10WD | JC-12WD | JC-15WD | MH-20AD | JC-25WD | JC-30WD | JC-40WD | JC-50WD |
Nominal output | 50HZ | Btu/h | 21560 | 28541 | 36427 | 48820 | 66095 | 80365 | 94636 | 121181 | 189272 | 228704 | 252363 | 378544 | 457408 |
Kw | 6.36 | 8.36 | 10.67 | 14.3 | 19.36 | 23.54 | 27.72 | 36.96 | 55.44 | 66.99 | 74.9 | 110.88 | 133.98 |
Kcal/h | 5433 | 7188 | 9175 | 12296 | 16647 | 20241 | 23835 | 31780 | 47670 | 57601 | 63560 | 95340 | 115202 |
USRT | 1.8 | 2.5 | 3.0 | 4.0 | 5.5 | 6.7 | 7.9 | 7.9 | 15.8 | 19.0 | 21.0 | 31.0 | 38.0 |
Power input | 220V/50Hz | 380-415V/3PHASE/52HZ |
Compressor Power | Kw | 1.82 | 2.5 | 3.58 | 4.56 | 5.85 | 7.38 | 8.2 | 11.84 | 7.38*2 | 8.85*2 | 11.84*2 | 15.02*2 | 18.8*2 |
Flow regulator | Capillary vessel/Ther moexpension valve |
Regreant | R22 |
Style | Highly effective red copper ripe socke t string auminum wing piece+low nose axial fan |
Fan Power | KW | 0.25 | 0.35 | 0.2*2 | 0.25*2 | 0.35*2 | 0.45*2 | 0.5*2 | 0.5*2 | 0.5*3 | 0.5*3 | 0.6*3 | 0.5*6 | 0.5*6 |
Evaporator | Style | Water tark type/Hub pipe type |
Water tank capacity | L | 50 | 50 | 55 | 75 | 145 | 210 | 210 | 360 | 510 | 510 | 510 | 600 | 780 |
Standard freezing water flow | m3/h | 1.04 | 1.44 | 1.84 | 2.46 | 3.33 | 3.58 | 4.77 | 6.37 | 9.55 | 11.54 | 12.73 | 19.10 | 23.08 |
Diameter of standard nipple | DN | 25 | 25 | 32 | 32 | 40 | 40 | 40 | 40 | 50 | 65 | 65 | 80 | 80 |
Built-in pump | Horsepower | HP | 0.5 | 0.5 | 1 | 1 | 1 | 1.5 | 1.5 | 2 | 2 | 3 | 3 | 5 | 5 |
Machine weight | Weight | KG | 102 | 150 | 176 | 260 | 320 | 380 | 410 | 710 | 830 | 1200 | 1400 | 1520 | 1620 |
Measure(mm) | long | 1000 | 1200 | 1380 | 1380 | 1580 | 1580 | 1580 | 1800 | 2000 | 2540 | 2650 | 2800 | 2800 |
Wide | 550 | 600 | 650 | 650 | 760 | 760 | 760 | 850 | 1050 | 1050 | 1155 | 1600 | 1700 |
Hight | 900 | 1230 | 1280 | 1280 | 1380 | 1380 | 1380 | 1650 | 1740 | 1900 | 1950 | 2000 | 2200 |
