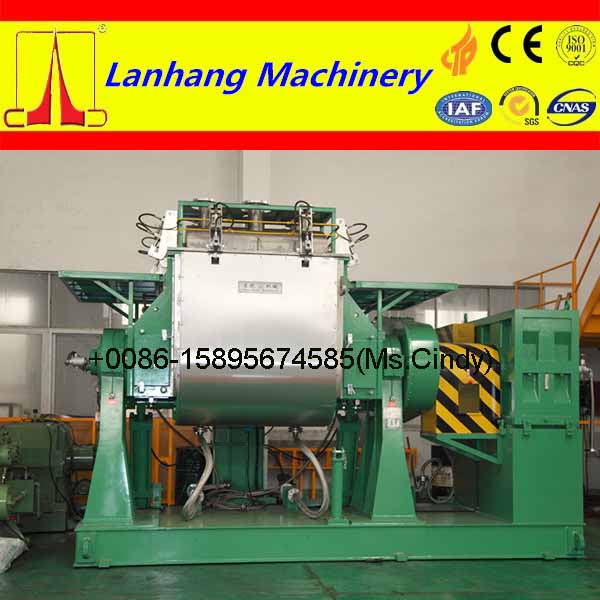

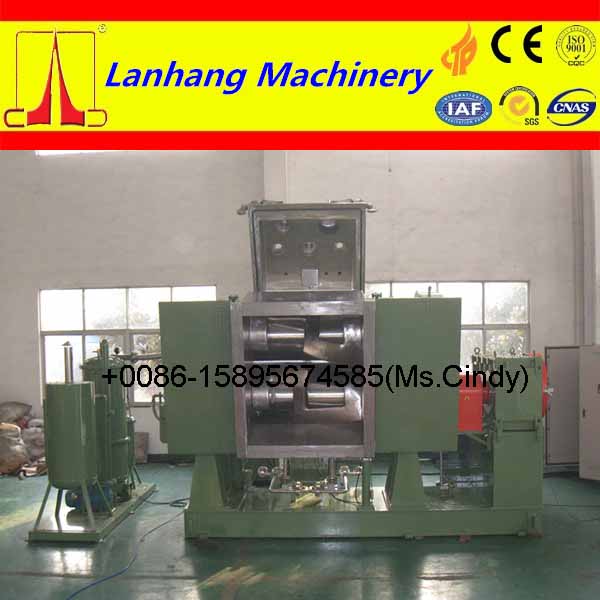

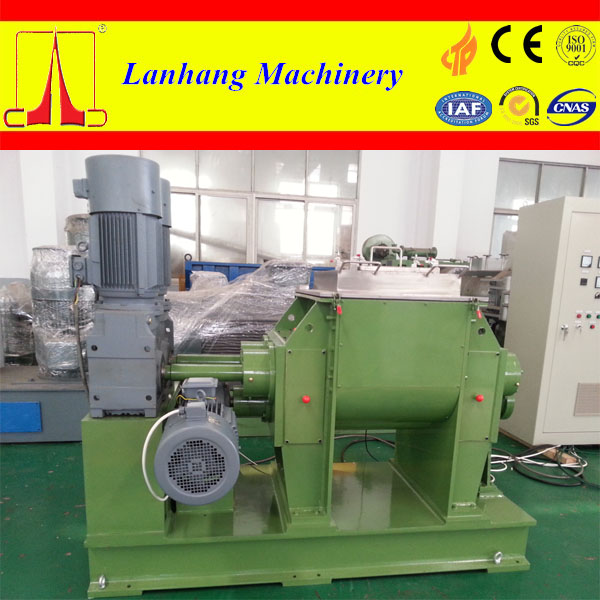

Specifications of bottom discharge kneader
1. Use: for silicone rubber mixing
2. Volume:500 1000, 1500, 2000, 3000,4000L
3. Rotor type:sigma /Z blade ,two wings blade
Breif introduction
This rubber kneader is special used for mixing and kneading high-viscositymaterial. It has a excellent effect for mixing, kneading, crushing and dispersing because of the intense shearing force which produced by two powerful rotary oars.
Type of discharging :one is bottom discharge.another is titling discharge.
Heating way:steam heating & oil heating & electric heating
Main material:Carbon steel,stainless steel
Cooling methed: Water cooling
Main technical parameter
Model | NH-5000 | NH-3000 | NH-2000 | NH-1500 | NH-500 |
Capacity (L) | 5000 | 3000 | 2000 | 1500 | 500 |
Filling Coefficient | 0.6 |
Agitator Blade | Sigma Z Blade Rotor |
Rotating Speed | N1 35r/min N2 21r/min | N1 40r/min N2 21r/min |
Jacket Pressure (Mpa) | ≤ 0.3 |
Chamber Pressure (Mpa) | ≤ -0.094 |
Cooling Type | Water Cooling |
Heating Methods | Jacket Steam / Oil / Electricity Heating |
Discharging Types | Hydraulic Tilting / Drop Door / Screw Extruding |
Unique Function | Vacuum and Nitrogen-filled Kneading Available |
Power Supply | AC 380V 50HZ 3P (customized available) |
Motor Power (Kw) | 300 | 220 | 160 | 132 | 90 |
Overall Dimension (mm) | 3400x2400x1900 | 3400x2200x1800 | 3280x2100x1700 | 3200x2000x1650 | 3000x1980x1600 |
Weight (T) | 25 | 15 | 11 | 9 | 6 |
