Product Description

HDPE Pipe Butt Fusion Machine/HDPE Pipe Butt Welding Machine/ HDPE Pipe Fitting Welding Machine
HDPE Pipe Welding Machine:

Application & feature:

Used in industrial fields and workshop to weld PP,PE pipe and/or fittings ,etc

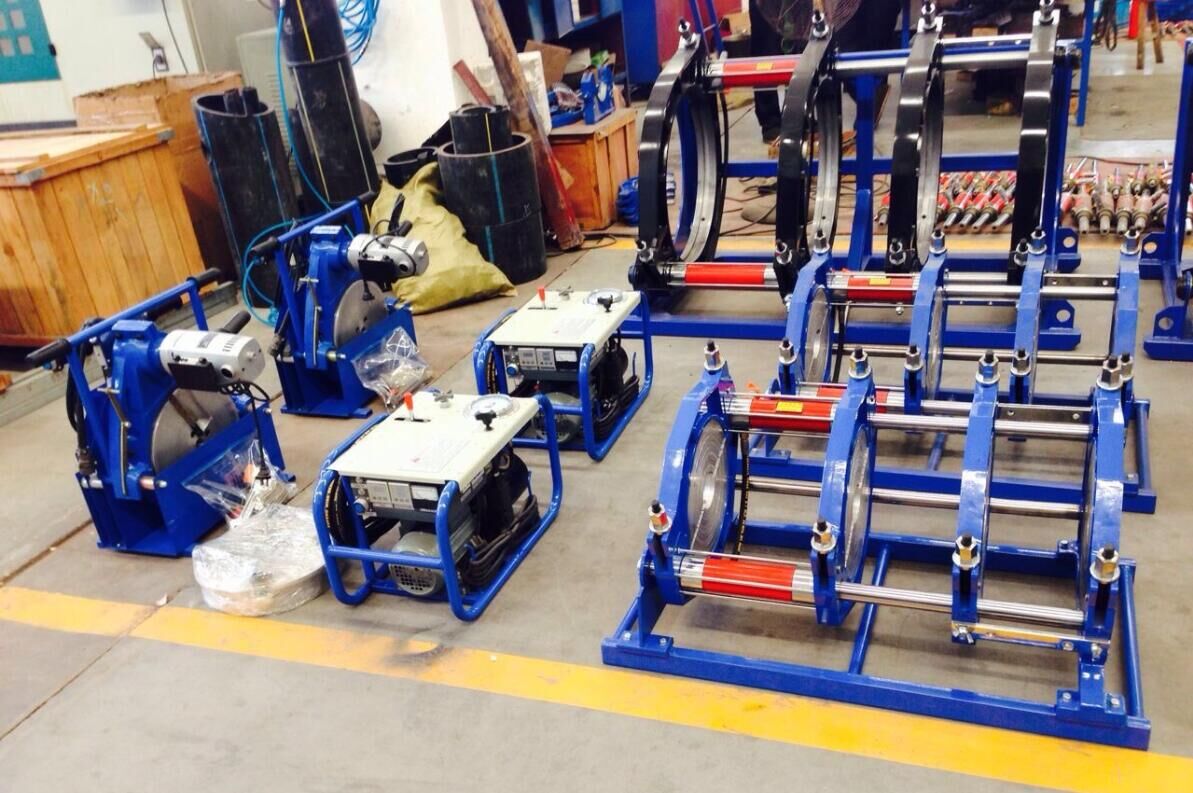

It consists of machine body, milling plate , heating mirror , hydraulic station , tool stand and option spare parts etc.

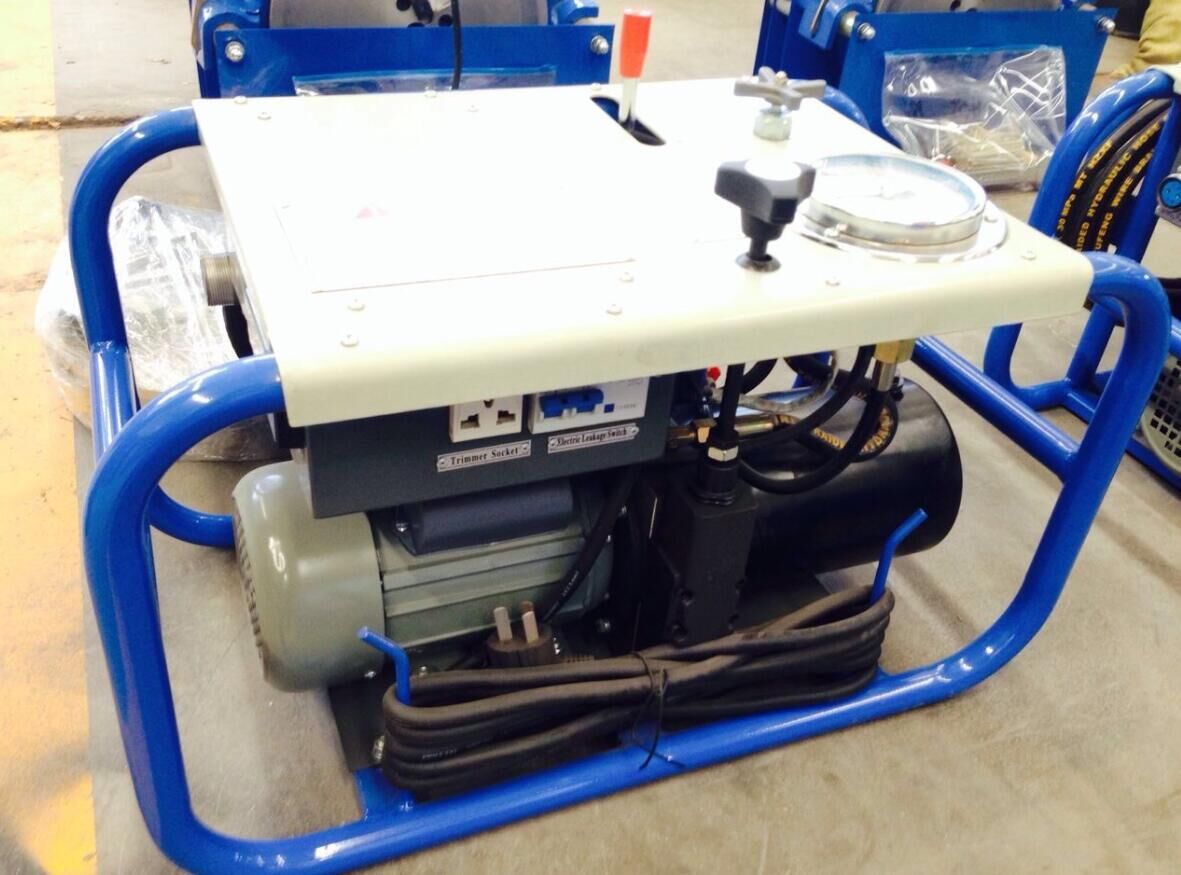

Hydraulic system adopts international advanced compact structure , cylinder seal ring and quick joint nozzle all use Europpean brand parts , reliable pressure hold , easy operation.

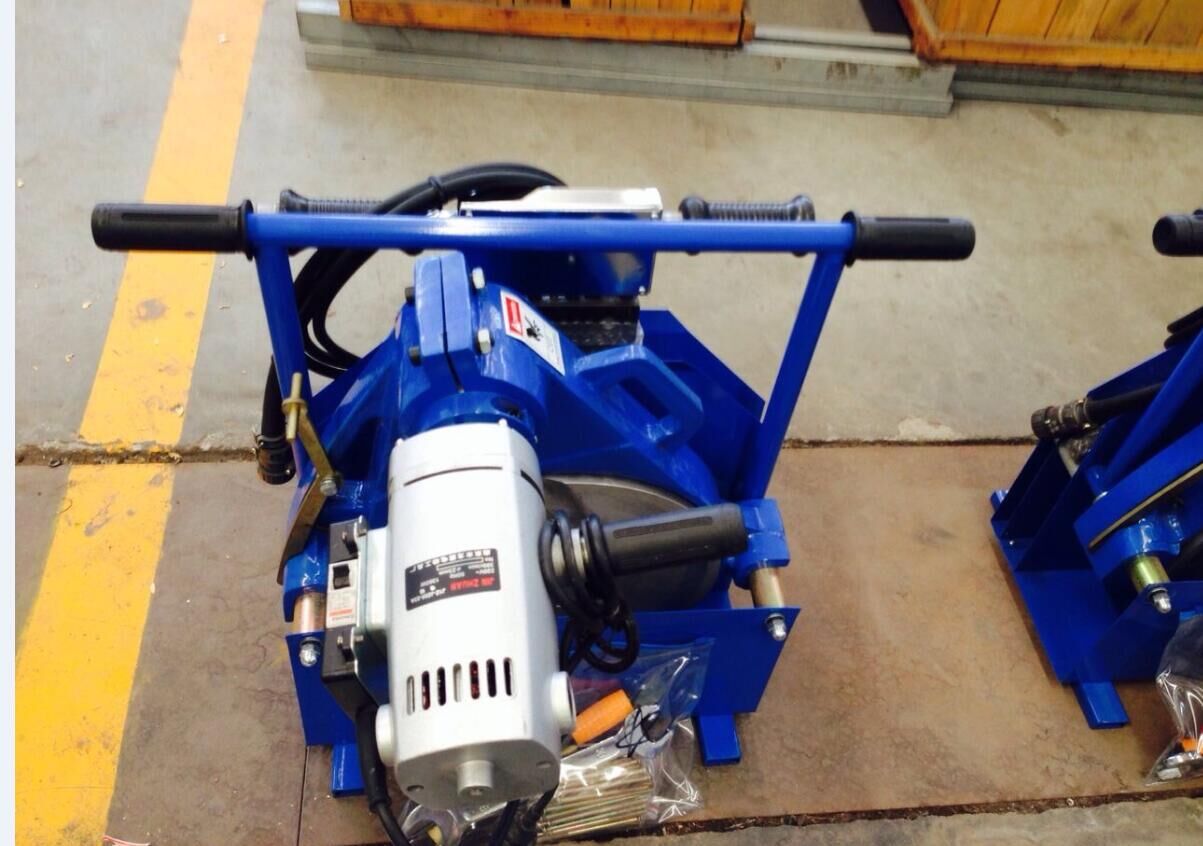

Adopt electrical milling with single or double facing function . Milling blade adopts high quality tooling steel , double sharpen blade can be shift using .
Heating mirror surface is coated with PTFE , independent temperature control system , and directly digital display.

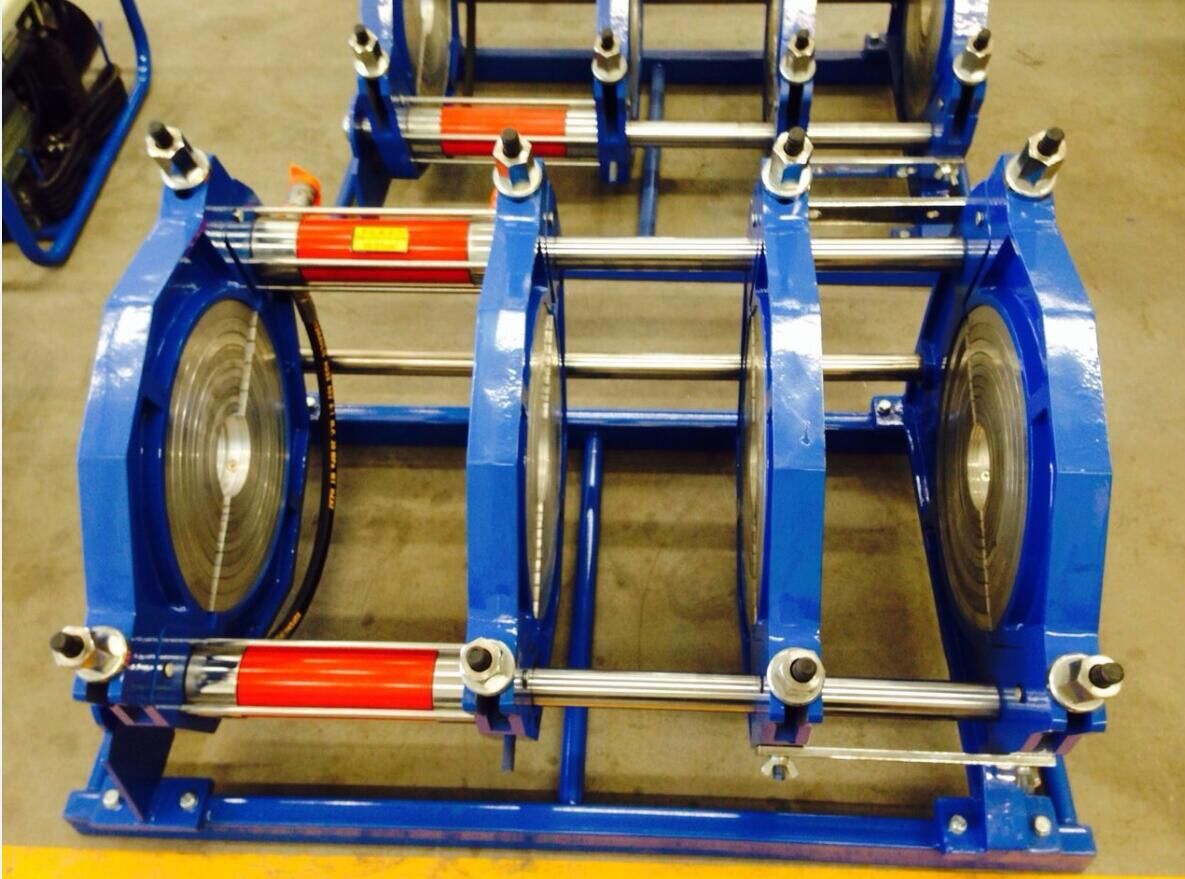

Machine body main parts adopt Al-alloy material , simple structure , easy operation .
Option accessory
Stub end device
Bend clamp
Independent clamp
Pressure accumulator
Electrical pulley (over RHD800)

Model No		RHD160	RHD250	RHD315	RHD450	RHD500
Working range(mm)		40,50,63, 75,90,110, 125,140,160	75,90,110, 125,140,160, 180,200,225,250	90,110,125,140, 160,180,200, 225,250,280,315	200,225,250 280,315,355, 400,450	200,225,250, 280,315,355, 400,450,500
Max temperature in heating mirror		270°C	270°C	270°C	270°C	270°C
Temperature difference in heating mirror		±5°C	±5°C	±5°C	±5°C	±5°C
Pressure working range		0-8MPa	0-8MPa	0-8MPa	0-8MPa	0-8MPa
Heating power		1kW	2kW	3kW	5.4kW	6.6kW
Milling power		0.7kW	1.1kW	1.1kW	1.5kW	1.5kW
Hydraulic station power		0.75kW	0.75kW	0.75kW	1.5kW	1.5kW
Total power		2.45kW	3.85kW	4.85kW	8.4kW	9.6kW
Power supply		220V/50HZ	220V/50HZ	220V/50HZ	380V/50HZ	380V/50HZ
Total weight		90kg	115kg	210kg	400kg	500kg
Dimension (mm)	Machine body	838x377x386	886x475x448	1016x570x575	1240x718x706	1280x765x760
	Tool stand	580x344x465	670x670x690	750x635x672	640x780x912	640x796x1035
	Hydraulic station	557x318x450	557x318x450	557x318x450	640x318x458	64440x318x458

Model No		RHD630	RHD800	RHD1000	RHD1200	RHD1600
Working range(mm)		355,400,450, 500,560,630	500,560, 630,710,800	560,630,710, 800,900,1000	630,710,800, 900,1000,1200	900,1000, 1200,1400,1600
Max temperature in heating mirror		270°C	270°C	270°C	270°C	270°C
Temperature difference in heating mirror		±7°C	±7°C	±7°C	±7°C	±10°C
Pressure working range		0-14MPa	0-14MPa	0-14MPa	0-14MPa	0-20MPa
Heating power		9.3kW	12kW	15kW	19.8kW	48kW
Milling power		1.5kW	2.2kW	3kW	4kW	5.5kW
Hydraulic station power		1.5kW	2.2kW	2.2kW	4kW	5.5kW
Total power		12.3kW	16.4kW	20.2kW	26kW	959kW
Power supply		380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ
Total weight		700kg	1120kg	2200kg	2875kg	5120kg
Dimension (mm)	Machine body	1575x1130x2540	2020x1490x1350	2450x1880x1640	2780x2140x1875	3805x2175x2170
	Tool stand	735x982x1220	1310x820x1515	1310x850x1815	1520x1035x2150	1065x1885x2440
	Hydraulic station	640x318x458	690x318x466	690x318x466	690x318x466	905x375x578
