+ Plastic crushers are of low energy consumption, good quality, long life and easy to operate and clean.

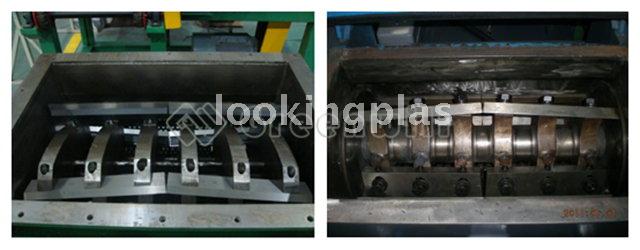

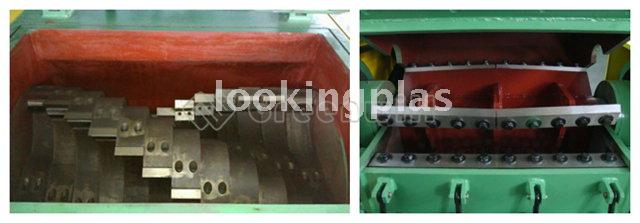

+ Cutting blades (knives) are of material D2 (SKD11), which are qualified and of long usage life. Easy to sharpen and replace blades.
+ Crushers are made of carbon steel, tough and reliable.
+ We provide free technical guidance and wholesale price for replacing blades.
There are five series of plastic crushers: ZSQ, ZSTQ, ZSV, ZSV2, ZSV3.
+ ZSQ series are designed to deal with small lumps, shredded pieces, injection wastes.
| ZS400Q | ZS600Q | ZS800Q |
Motor power | 7.5kw | 15kw | 22/30kw |
Dimensions of feeding door | 400*240(mm) | 600*500(mm) | 800*500(mm) |
Rotary knives | 12 pcs | 18pcs | 24pcs |
Fixed knives | 2pcs | 4pcs | 4pcs |
Knife material | D2 | D2 | D2 |
Rotary Diameter | 205mm | 320mm | 420mm |
Size of sieve mesh | 8-16mm(or customized) | 8-16mm(or customized) | 8-16mm(or customized) |
Output capacity | 150-200kg/h | 300-400 kg/h | 500-700 kg/h |
Weight of machine | 500kg | 1300kg | 2000kg |
+ ZSTQ series are of stronger cutting power to deal with materials such as pipes(wall thickness less than 25mm), thin sheets in whole.
| ZS2136TQ | ZS3248TQ | ZS4266TQ | ZS5072TQ |
Motor power | 7.5kw | 18.5kw/22kw | 30kw/37kw | 37kw/45kw |
Dimensions of feeding door | 400*300(mm) | 500*330(mm) | 700*700+300*450(mm) | 800*700+300*450(mm) |
Rotary knives | 18 pcs | 24 pcs | 33 pcs | 36 pcs |
Fixed knives | 2pcs | 2pcs | 4pcs | 4pcs |
Knife material | D2 | D2 | D2 | D2 |
Rotary Diameter | 210mm | 320mm | 420mm | 500mm |
Size of sieve mesh | 8-16mm(or customized) | 8-16mm(or customized) | 8-16mm(or customized) | 8-16mm(or customized) |
Output capacity | 150-200kg/h | 200-300kg/h | 300-400kg/h | 400-500kg/h |
Weight of machine | 500kg | 1500kg | 2000kg | 2300kg |
+ ZSV, ZSV2, ZSV3 series are suitable for crushing PET bottles, PP/PE film in rolls, milk bottles, containers, hollow barrels, panels, sheets, etc. Model ZS800V and all series of ZSV2, ZSV3 work with water cooling to help promote efficiency and output.
| ZS400V | ZS600V | ZS800V |
Motor power | 7.5 kw | 15 kw | 22kw/30kw |
Dimensions of feeding door | 400*240(mm) | 600*500(mm) | 800*500(mm) |
Rotary knives | 6шт | 6шт | 9шт |
Fixed knives | 2шт | 4шт | 4шт |
Knife material | D2 | D2 | D2 |
Rotary Diameter | 220 mm | 320 mm | 420 mm |
Size of sieve mesh | 8-16mm(or customized) | 8-16mm(or customized) | 8-16mm(or customized) |
Output capacity | 150-200 kg/h | 300-400 kg/h | 500-700 kg/h |
Weight of machine | 500 kg | 1300 kg | 2000 kg |
| ZS600V2 | ZS800V2 | ZS1000V2 | ZS1200V2 |
Motor power | 22kw/30kw | 37kw/45kw | 45kw/55kw | 55kw/75kw |
Dimensions of feeding door | 800*600(mm) | 800*750(mm) | 1000*750(mm) | 1200*750(mm) |
Width of crushing chamber | 600mm | 800mm | 1000mm | 1200mm |
Rotary knives | 6 pcs | 6 pcs | 6 pcs | 6 pcs |
Fixed knives | 4 pcs | 4 pcs | 4 pcs | 4 pcs |
Knife material | D2 | D2 | D2 | D2 |
Rotary Diameter | 450 mm | 600 mm | 600 mm | 600 mm |
Size of sieve mesh | 8-16mm(or customized) | 8-16mm(or customized) | 8-16mm(or customized) | 8-16mm(or customized) |
Output capacity | 400-600 kg/h (PET bottles) | 600-800 kg/h (PET bottles) | 900-1200 kg/h (PET bottles) | 1000-1500 kg/h (PET bottles) |
Weight of machine | 2000 kg | 2500 kg | 3000 kg | 3500 kg |
| ZS800V3 | ZS1000V3 | ZS1200AV3 | ZS1200BV3 | ZS1200CV3 |
Motor power | 45 kw | 55kw/75kw | 75kw/90kw | 90kw/110kw | 110kw/132kw |
Dimensions of feeding door | 800*750(mm) | 1000*750(mm) | 1200*750(mm) | 1200*850(mm) | 1200*850(mm) |
Width of crushing chamber | 800 mm | 1000 mm | 1200 mm | 1200 mm | 1200 mm |
Rotary knives | 6 pcs | 6 pcs | 6 pcs | 8 pcs | 10 pcs |
Fixed knives | 6 pcs | 6 pcs | 6 pcs | 6 pcs | 6 pcs |
Knife material | D2 | D2 | D2 | D2 | D2 |
Rotary Diameter | 650 mm | 650 mm | 650 mm | 800 mm | 800 mm |
Size of sieve mesh | 8-16mm(or customized) | 8-16mm(or customized) | 8-16mm(or customized) | 8-16mm(or customized) | 8-16mm(or customized) |
Output capacity | 800-1000 kg/h (PET bottles) | 1000-1200 kg/h (PET bottles) | 1100-1300 kg/h (PET bottles) | 1500-1600 kg/h (PET bottles) | 1600-1700 kg/h (PET bottles) |
Weight of machine | 3000 kg | 3500 kg | 4000 kg | 5000 kg | 5300 kg |
