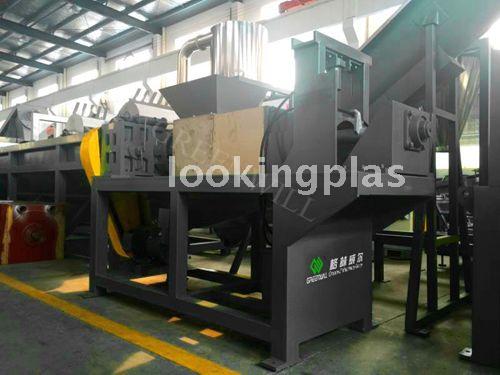

This squeezing machine is specially designed for dewatering wet soft plastic by squeezing mechanically. The final moisture content is around 3-5%. The material dried by this machine is widely used in granulating machine.
Application:
This machine is especially for plastic film, plastic bags, woven bags, Jumbo bags.
Working principle:
1.squeezing machine consists of frame, feeding box, discharging box, spiral spindle, sieve plate, fixed shell for sieve plate, driving system, etc. Your material will be put into the feeding box, with the help of screw shaft, un-equidistant screw shaft and fixed sieve plate will squeeze the material in order to wiping and dewatering.

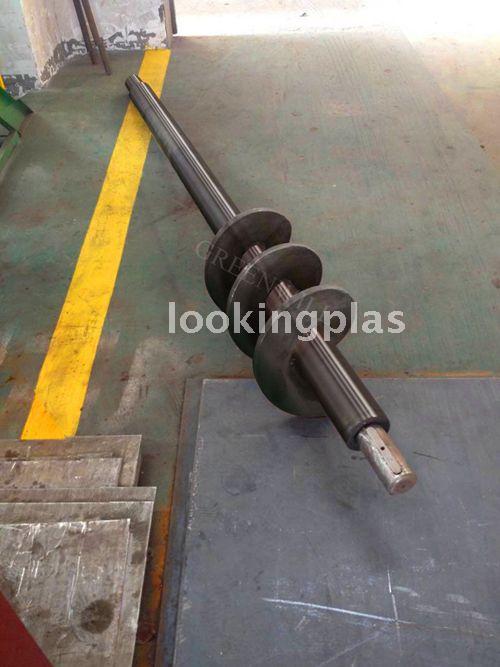

2. squeezing machine is conical shell, equipped with un-equidistant screw shaft, which will compress material during rotating because of the difference from screw pitch length and height. The water squeezed from material will flow to launder through screen hole, and the material will be discharged from exhaust end.
Main Technical Parameter
Product cpacity:500~700kg/h and 800~1000kg/h two model
Model | 300(500~700kg/h) | 380(800~1000kg/h) |
Motor power | 18.5kw | 22kw |
Screw diameter | 300mm | 380mm |
|
|
|
