Large diameter water plastic PVC pipe production line machine
plastic PVC pipe application
1-PVC pipe: main raw material of producing PVC pipe is PVC resin powder.
2-PVC pipe is a kind of general purpose pipes to points: drains, pipe, conduit, cable sheathing, because raw recipe is different, indicators of every type pipes compression are not the same.
3-PVC water pipe with water accessories, for building water supply projects.
PVC drain pipes for sewage
plastic PVC pipe scrap recycling production line machine process
Mixed raw + additive → forced feeding conveyor→ conical twin screw extruder → Vacuum sizing tank → ink printing machine → Crawler tractor → cutting machine → stacker
plastic PVC pipe production line machines equipment functions
1-The raw material mixture: make PVC stabilizers, plasticizers, antioxidants, and other materials mixed, according to the proportion added to high-speed mixer. Then put into the colding mixer,make the material cooling down to 40-50 degrees; This can be added to the extruder hopper
2- The machine is equipped with rated material feeding device, so the extrusion volume can be matched to feeding quantity ,ensure the stability of extruded products.
3- After compaction, melt-kneading homogenized PVC, with a subsequent screw into the material through the die, the extrusion die is a tube forming part of the construction related

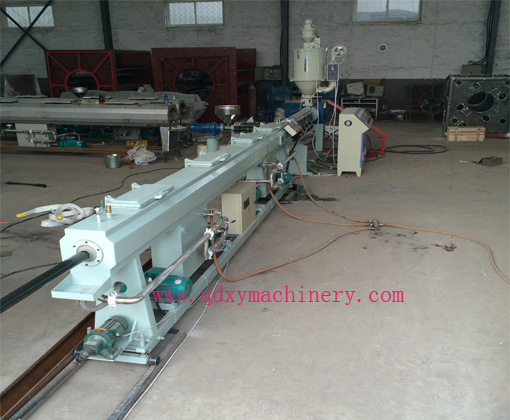

4- The vacuum sizing tank equipped with vacuum system and water cooling system.
Stainless steel box, circulating water spray cooling,moving devices,and manual height adjustment device

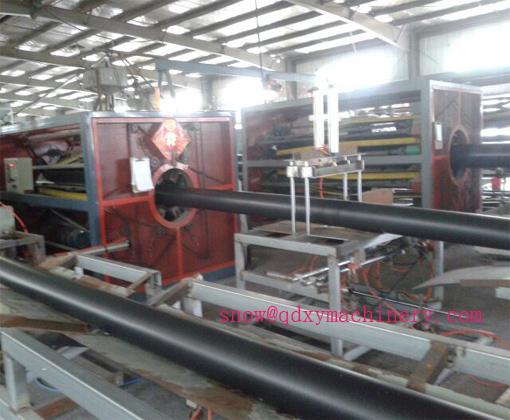

5-haul-off: Frequency Control

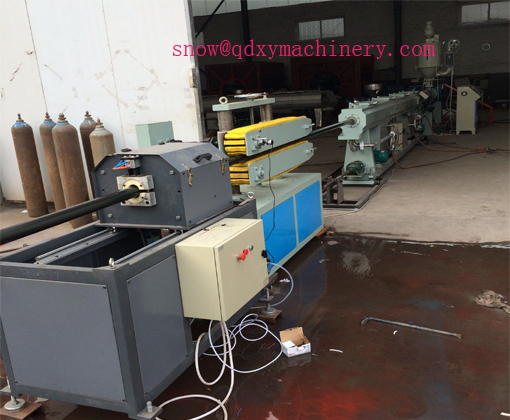

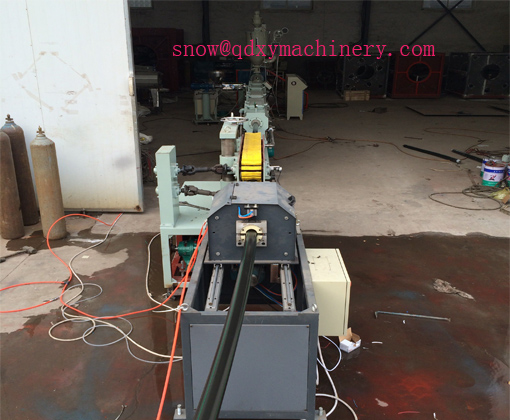

6- Cutting machine:the cutting process in sync with the pipe run, the cutting process electric and pneumatic driven by the completion of the cutting machine is equipped with vacuum devices, debris will be sucked out of the cutting to produce timely and recycling
7- Stacker : stacker actions to be implemented by the cylinder through the pneumatic control
Main Technical Parameters of plastic PVC Pipe
Model | PVCG-63 | PVCG-110 | PVCG-160 | PVCG-250 | PVCG-315 | PVCG-400 | PVCG-630 |
MATCHED EXTRUDER | SJZ51/105 | SJZ65/132 | SJZ65/132 | SJZ65/132 | SJZ80/156 | SJZ80/156 | SJG92/188 |
OD RANGE(mm) | 16-63 | 50-110 | 50-160 | 75- 250 | 110-315 | 200-400 | 315-630 |
LENGTH OF VACUUM CALIBRATOR TANK(mm) | 4000 | 5000 | 6000 | 6000 | 6000 | 6000 | 6000 |
HAUL SPEED(m/min) | 0.6-8 | 0.6-6 | 0.5-5 | 0.4-4 | 0.3-3 | 0.2-2.5 | 0.2-1.5 |
INSTALLED POWER(kw) | 55 | 75 | 85 | 95 | 125 | 135 | 255 |
TOTAL LENGTH9(mm) | 15000 | 17000 | 18000 | 20000 | 20500 | 28000 | 30000 |
