Brief introduction:
The HFTF-T series thermoforming guarantees high system performance in terms of production speed,management,saving and the best hygiene conditions for food packaging production.this series thermoforming the advantage of high yield,reliability,suitable for mass production.integrated new concept and future trend technology control system to ensure production efficiency and stability.
Application:

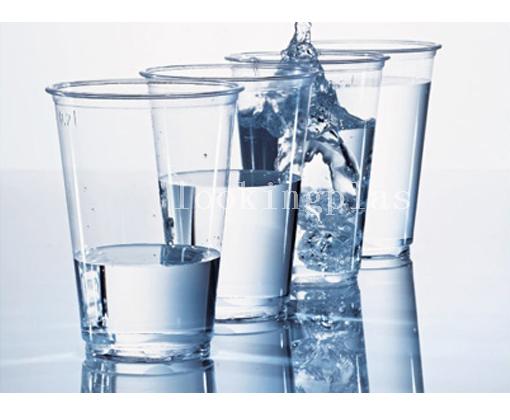

suitable for foming PP,PS,PET,PLC,PVC sheet that can produce all kind of plastic products,such as drinking cups,milk cups,water cups.
Features:
1.Driven by cam more durable and faster after optimize design.
2.Forming with 7bar pressure,cutting in mould.
3.Automatic counting and stacking for more sanitary and save labor.
4.Plug and feeding driven by servo motor.
5.Maximum speed 45 cycles per minuters.
6.Mould with rapid change device,easy maintenance.
Main technical parameter:
Model | HFTF-55T | HFTF-70T | HFTH-80T |
Max.tool size with pneumatic clamp frame | 530X300mm | 685X320mm | 780X500mm |
Max forming depth | 150mm | 180mm | 200mm |
Max sheet width | 580mm | 735mm | 850mm |
Sheet thickness range | 0.3-2.0mm | 0.3-2.5mm | 0.4-2.5mm |
Clamping force | 250KN | 350KN | 750KN |
Max no-load speed | 45cycles/min | 45cycles/min | 40cycles/min |
Upper/lower heating power | 50/45kw | 70/60kw | 80/70kw |
Air pressure | 7-8.5bar | 7-8.5bar | 7-8.5bar |
Total installed power | 120kw | 160kw | 200kw |
Machine dimension | 10X3.5X3.5 | 12X4X3.5 | 13X4.5X3.8 |
Machine weight | 8500Kg | 12000kg | 15000kg
|
