Detailed Product Description
★ Special screened bimetallic screw with mixing head
★ The screw use PID intelligent temperature control
★ Double spinnerets make the yarn more even and steady
★ The extruder uses pressure sensor to accurately control the output of screw
★ The cooling water tank has independent heating system
★ New type of the hot water tank keeps temperature stable and saves energy
★ All the take-off units use casting frame to keep bevel wheel running smooth
★ Doulbe layer oven can stretch the yarn in all around
★ Specially designed passage of hot oven,makes hot wind distribute evenly
★ The oven is heated by electrical pipe which can reach 300 degree
★ European standard safeguard system
★ The winders use linear guideway to control the alternate motion
Main technical parameter:

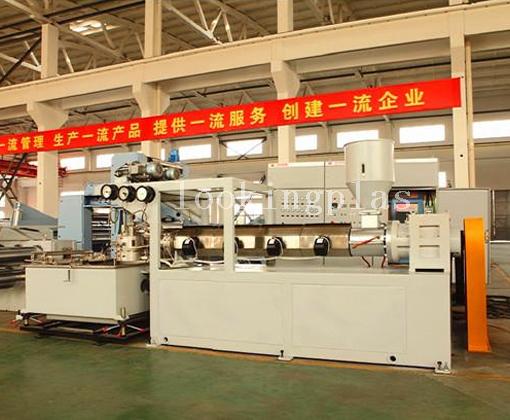

Item | SYL-Z65×28-750 monofilament extruding line for industrial net |
PET | PET |
Dia. of monofilament | Ø0.10-Ø0.35mm |
Dia. of screw | Ø65mm |
Ratio of L/D | 28:1 |
Holes of spinneret | 120 pcs |
Heating type of spinneret | oil-heating |
Stretching mode | hot water, hot wind |
Qty. of stretching unit | 4 |
System installed capacity | 350KW |
Normal operational capacity | 210KW |
Overall size(L×W×H) | 52000×3800×2400mm |
Total weight | 36T |
