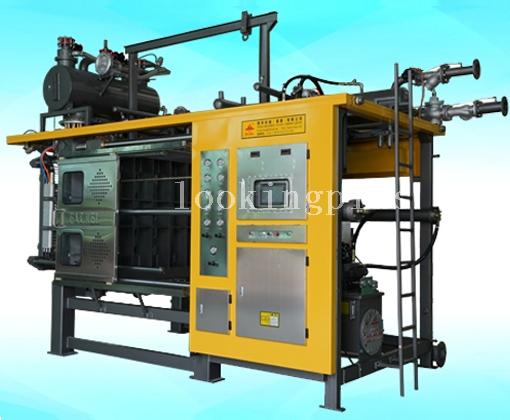

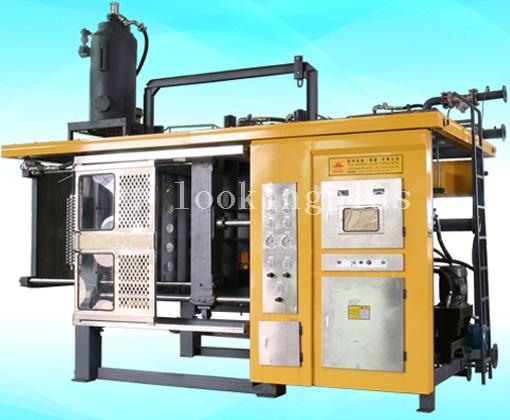

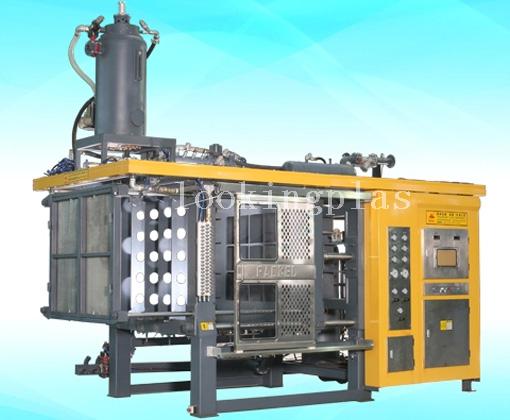

In recent year, people use more and more foam, and the competition among the manufacturers becoming more and more tension. Prime cost and energy consumption is the sword of Damocles, which is hang above the foam producer. We concerned what the customer is concerned. Base on the 20 years’ EPS foam machine making experience and years’ research, we optimize the details on each process. After thousands experiment, we solve the energy consumption magic cube. Thus this century series of shape moulding machine, which is high efficient and low energy consumption, is the come out. Once you own one, you can know what high capacity, fast moulding, low energy consumption and low rate of spoiled products real is. Meanwhile, you will proud of yourself for your contribution to reduce the burden of the earth and the reduce charging of nitrogen dioxide after apply our new series of machine.
Compare with the traditional machine, the new series vacuum shaping machine have many advantages:
The steam consumption can be saved more than 40%.
The production efficiency can be improved more than 20%.
When the pressure of the main steam pipe is 1.5 KG, the machine still can keep working.
We are the first to apply energy supervise function in the EPS industry.
It can precisely show how much steam has been consumed in each cycle.
The energy cost of the machine could be easily control.
Model No. | Unit | FKS-911 | FKS-108 | FKS-1412 | FKS-1615 | FKS-1714 |
Mould Dimension | MM | 900×1100 | 1000×800 | 1400×1200 | 1600×1500 | 1750×1400 |
Open Stroke | Max. | MM | 1200 | 1200 | 1200 | 1200 | 1200 |
Min. | MM | 200 | 200 | 200 | 200 | 200 |
Hydraulic Operating Pressure | (high+ low)bar | 210+70 | 210+70 | 210+70 | 210+70 | 210+70 |
Steam Connector | DN | 65 | 65 | 100 | 100 | 100 |
Compressed Air Connector | DN | 40 | 40 | 50 | 50 | 50 |
Cooling Water Connector | DN | 65 | 65 | 80 | 80 | 80 |
Condensate Connection | DN | 50 | 50 | 80 | 80 | 80 |
Drainage Outlet | DN | 150 | 150 | 150 | 150 | 150 |
Filling System | Hopper | Unit | 1 | 1 | 1 | 1 | 1 |
Hopper Volume | L | 120 | 120 | 160 | 220 | 160 |
Max. Outlets for Filling Gun | Piece | 19 | 19 | 35 | 35 | 35 |
Material Connection | R | 2" | 2" | 3" | 3" | 3" |
Electrical Capacity | Hydraulic | KW | 3.75 | 3.75 | 7.5 | 11 | 11 |
Vacuum Pump | KW | 4 | 3.75 | 5.5 | 7.5 | 7.5 |
Hopper | KW | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 |
Weight | Kg | 5500 | 5000 | 6800 | 7500 | 8100 |
Dimension | L×W×H (MM) | 4780×1800 ×3600 | 4780×2000 ×3580 | 5120×2580 ×4090 | 5120×2700 ×4200 | 5120×2900 ×4200 |
All sepcification are subject to change without prior notification.
