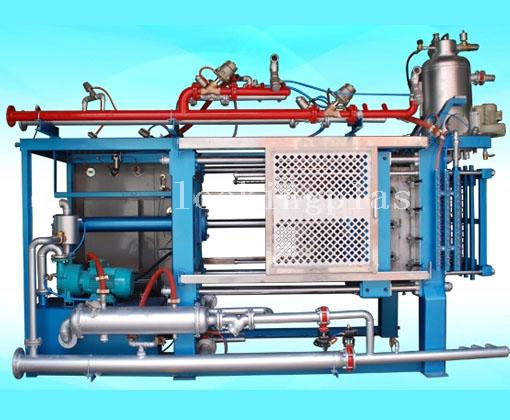

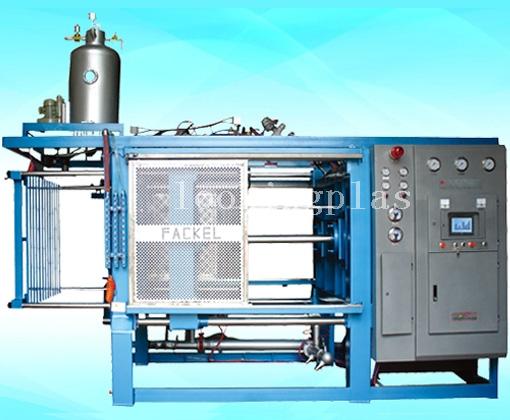

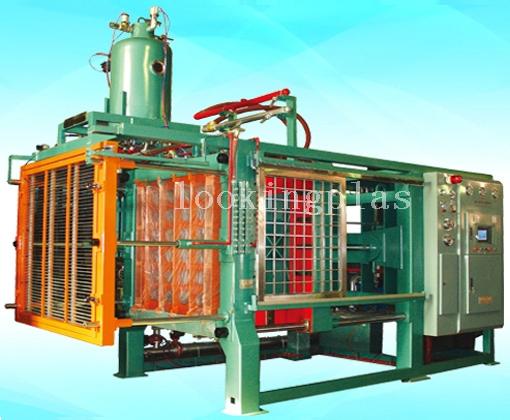

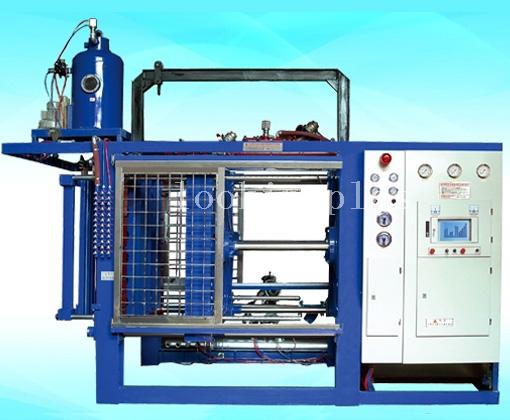

In order to meet the modern industry’s requirement of flexible production, we develop this series full automatic EPS Shape Moulding machine in 1990. It can achieve high performance by cutting the cycle time down. And its operate is more easy. Either for engineering products manufacturing or packaging parts production, it can feature all detail functions to match with the designated shapes.
Description | Unit | HJ-900 | HJ-1000 | HJ-1200 | HJ-1400 | HJ-1600 | HJ-1750 | HJ-1850 |
Mould Dimension | L×W(mm) | 900×700 | 1000×800 | 1200×1000 | 1400×1200 | 1600×1500 | 1750×1400 | 1850×1500 |
Product Dimension | L×W(mm) | 750×550 | 850×650 | 1050×850 | 1200×1050 | 1400×1350 | 1550×1250 | 1650×1350 |
Product Height | mm | 200 | 350 | 350 | 350 | 350 | 350 | 350 |
Mould Stroke | Max. | mm | 1100 | 1320 | 1400 | 1400 | 1400 | 1400 | 1400 |
Min. | mm | 100 | 120 | 200 | 200 | 200 | 200 | 200 |
Guiding Bar | Quantity | piece | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
Diameter | mm | 55 | 65 | 70 | 75 | 80 | 80 | 85 |
Steam System | Machine Inlet | DN | 2'' | 2'' | 2'' | 2 1/2'' | 3'' | 3'' | 3'' |
Mould Inlet | DN×Inlet | 1'' × 2 | 1''×4 | 1''×4 | 1''×4 | 1''×4 | 1''×4 | 1''×4 |
Consumption | kg/cycle | 3.5 | 4 | 5 | 6 | 7 | 7 | 8 |
Pressure | Mpa | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
Compressed Air System | Machine Inlet | DN | 1'' | 1'' | 1 1/2'' | 1 1/2'' | 1 1/2'' | 1 1/2'' | 2'' |
Consumption | m3 x cycle | 0.8 | 1 | 1 | 1.5 | 2 | 2 | 3 |
Pressure | Mpa | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Cooling System | Machine Inlet | DN | 2'' | 2'' | 2'' | 2 1/2'' | 3'' | 3'' | 3'' |
Mould Inlet | DN×Inlet | 1'' × 2 | 1''×4 | 1''×4 | 1''×4 | 1''×4 | 1''×4 | 1''×4 |
Consumption | L/cycle | 10 | 16 | 20 | 25 | 35 | 35 | 45 |
Temperature | ℃ | 35 | 35 | 35 | 35 | 35 | 35 | 35 |
Hydraulic System | Cylinder | piece | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
Stroke | mm | 1000 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 |
Speed | mm/sec. | 140 | 140 | 140 | 125 | 120 | 120 | 100 |
Operating Pressure | High + Low | 210 + 70 | 210 + 70 | 210 + 70 | 210 + 70 | 210 + 70 | 210 + 70 | 210 + 70 |
Oil Tank Volume | L | 163 | 163 | 220 | 220 | 220 | 220 | 220 |
Vacuum System | Consumption | L/cycle | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
Pump Capacity | L/min | 1950 | 1950 | 2910 | 3700 | 3700 | 3700 | 3700 |
Filling System | Filler | piece | 21 | 21 | 21 | 42 | 50 | 50 | 50 |
Hopper | unit | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
Hopper Volume | L | 110 | 110 | 110 | 110 | 160 | 160 | 160 |
Electrical Capacity | kw | 7.92 | 8.45 | 8.45 | 12.1 | 16.1 | 16.1 | 19.6 |
Machine Dimension | Length | mm | 3255 | 4200 | 4500 | 4600 | 4700 | 4700 | 4700 |
Width | mm | 1675 | 1800 | 1990 | 2090 | 2230 | 2350 | 2430 |
Height | mm | 2855 | 3500 | 3400 | 3500 | 3620 | 3620 | 3650 |
Machine Weight | kg | 3800 | 4500 | 4800 | 5200 | 6000 | 6200 | 7000 |
Description | Unit | FH-1000 | FH-1200 | FH-1400 | FH-1600 | FH-1750 | FH-1850 |
Mould Dimension | L×W(mm) | 1000×800 | 1200×1000 | 1400×1200 | 1600×1500 | 1750×1400 | 1800×1500 |
Product Dimension | L×W(mm) | 850×650 | 1050×850 | 1200×1050 | 1400×1350 | 1550×1250 | 1650×1350 |
Product Height | mm | 350 | 350 | 350 | 350 | 350 | 350 |
Mould Stroke | Max. | mm | 1320 | 1400 | 1400 | 1400 | 1400 | 1400 |
Min. | mm | 120 | 200 | 200 | 200 | 200 | 200 |
Guiding Bar | Quantity | piece | 4 | 4 | 4 | 4 | 4 | 4 |
Diameter | mm | 65 | 70 | 75 | 80 | 80 | 85 |
Steam System | Machine Inlet | DN | 65 | 65 | 75 | 100 | 100 | 100 |
Mould Inlet | DN×Inlet | 25×4 | 25×4 | 40×4 | 40×6 | 40×6 | 40×6 |
Consumption | kg/cycle | 4 | 5 | 8 | 10 | 10 | 12 |
Pressure | Mpa | 0.3-0.5 | 0.3-0.5 | 0.3-0.5 | 0.3-0.5 | 0.3-0.5 | 0.3-0.5 |
Compressed Air System | Machine Inlet | DN×Inlet | 40×2 | 40×2 | 40×2 | 40×2 | 40×2 | 40×2 |
Mould Inlet | DN×Inlet | 25×4 | 25×4 | 40×4 | 40×6 | 40×6 | 40×6 |
Consumption | m3 x cycle | 1 | 1.3 | 1.5 | 1.8 | 2 | 2.4 |
Pressure | Mpa | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Cooling System | Machine Inlets for H/L temp. | DN | 50 | 50 | 65/ | 75/ | 75 | 75 |
Mould Inlet | DN×Inlet | 25×4 | 25×4 | 25×4 | 25×6 | 25×6 | 25×6 |
Consumption | L/cycle | 16 | 20 | 25 | 35 | 35 | 45 |
High/Low Temperature | ℃ | 35 | 35 | 35 | 35 | 35 | 35 |
Vacuum System | Consumption | L/cycle | 4 | 4 | 6 | 8 | 8 | 10 |
Pump Suction | L/min. | 1950 | 2910 | 3700 | 3700 | 3700 | 3700 |
Drain System | Condensate Outlet | DN | 125 | 125 | 125 | 150 | 150 | 160 |
Hydraulic System | Cylinder | piece | 2 | 2 | 2 | 2 | 2 | 2 |
Cylinder Diameter | DN | 63 | 70 | 70 | 75 | 75 | 80 |
Stroke | mm | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 |
H/L Speed | mm/sec. | 140 | 140 | 125 | 120 | 120 | 120 |
Operating Pressure | High + Low | 210+70 | 210+70 | 210+70 | 210+70 | 210+70 | 210+70 |
Oil Tank Volume | L | 163 | 163 | 220 | 220 | 220 | 250 |
Filling System | Hopper | unit | 1 | 1 | 1 | 2 | 2 | 2 |
Max. Holes For Filler | piece | 21 | 21 | 25 | 50 | 50 | 50 |
Hopper Volume | L/unit | 110 | 110 | 160 | 160 | 160 | 160 |
Electrical Capacity | kw | 8.45 | 8.45 | 12.1 | 16.1 | 16.1 | 23.1 |
Machine Dimension | Length | mm | 4200 | 4500 | 4600 | 4700 | 4700 | 4700 |
Width | mm | 1800 | 1990 | 2090 | 2230 | 2350 | 2430 |
Height | mm | 3500 | 3400 | 3500 | 3620 | 3600 | 3650 |
Machine Weight | kg | 2800 | 3300 | 3800 | 4700 | 4700 | 5000 |
