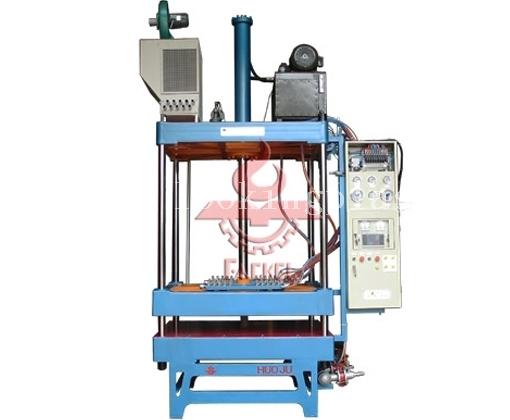

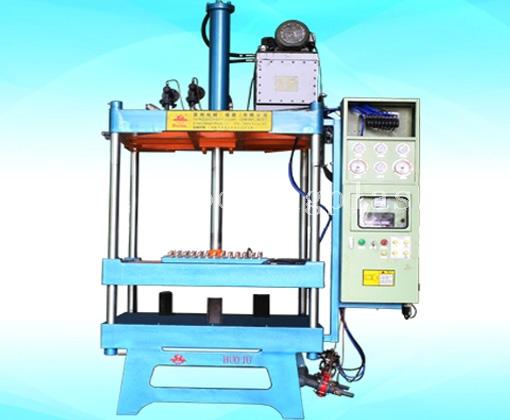

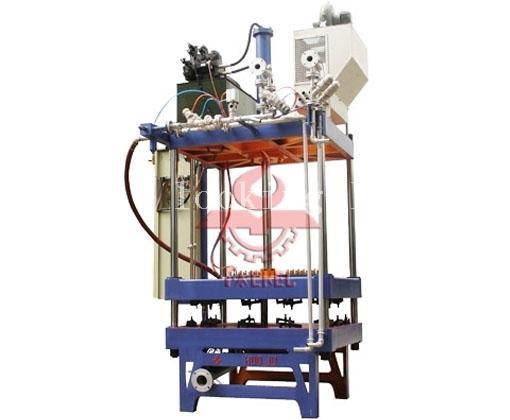

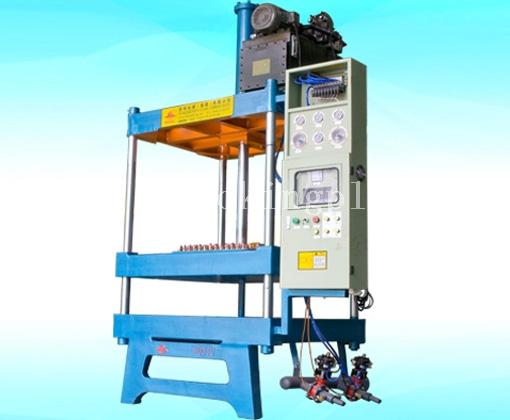

Base on the needed of the market, we develop this vertical non-vacuum series computer control eps shape moulding machine on 1999. The design of this kind of machine is base on our years’ experience in EPS industry and repeated testing. We applied imported PLC & touch screen to the control system. All manufacturing process of the machine, include mould close, material filling, expanding, cooling and demoulding are fully automatic. So customer could easily control the production process.
Description | Unit | HJV-1000 | HJV-1200 | HJV-1400 |
Mould Size | mm | 1000x800 | 1200x1000 | 1400x1200 |
Product Size | mm | 850x650 | 1050x850 | 1200x1050 |
Product Height | mm | 280 | 300 | 300 |
Opening Stroke | Max | mm | 1150 | 1200 | 1200 |
Min | mm | 150 | 150 | 150 |
Guilding Bar | Diameter | mm | 60 | 65 | 70 |
Quantity | Piece | 4 | 4 | 4 |
Hydraulic Cycliner | Quantity | Piece | 1 | 1 | 1 |
Stroke | mm | 1000 | 1050 | 1050 |
Speed | mm/sec | 125 | 125 | 120 |
Steam System | Main Inlet | inch | 1 | 1 | 1.5 |
Mould Inlet | inch | 1x2 | 1x2 | 1x2 |
Pressure | kg | 5—7 | 5—7 | 5—7 |
Cooling System | Mould Inlet | inch | 1 | 1 | 1.5 |
Pressure | kg | 3 | 3 | 3 |
Temperature | ℃ | 40 | 40 | 40 |
Drainage System | Main Inlet | inch | 3 | 3 | 4 |
Mould Inlet | inch | 1.5x2 | 1.5x2 | 2x2 |
Compressed Air System | Main Inlet | inch | 1 | 1 | 1.25 |
Pressure | kg | 5 | 5 | 5 |
Filling System | Filler | Piece | 10 | 13 | 18 |
Hopper Volume | L | 150 | 180 | 200 |
Motor Capacity | Hydraulic | KW/HP | 3.7/5 | 3.7/5 | 5.5/7.5 |
Hopper | KW/HP | 0.37 | 0.37 | 0.7 |
Oil Tank Volume | L | 163 | 163 | 220 |
Machine Size | Length | mm | 1500 | 1700 | 1900 |
Width | mm | 2320 | 2520 | 2720 |
Height | mm | 3220 | 3365 | 3490 |
Machine Transport Weight | kg | 1800 | 2000 | 2800 |
