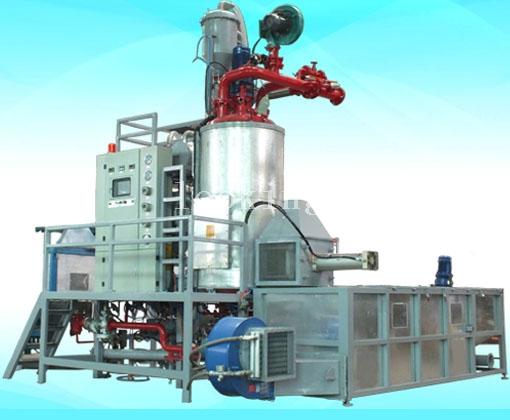

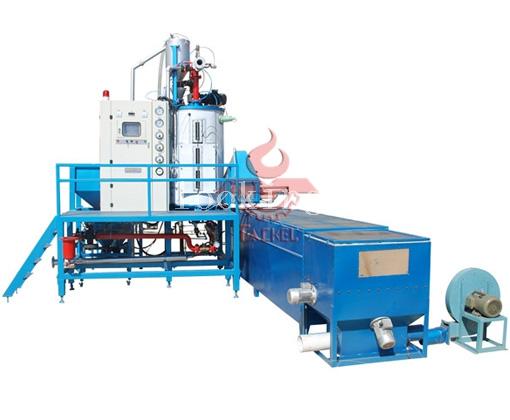

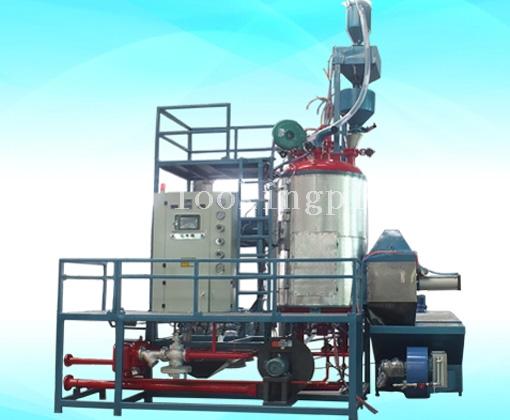

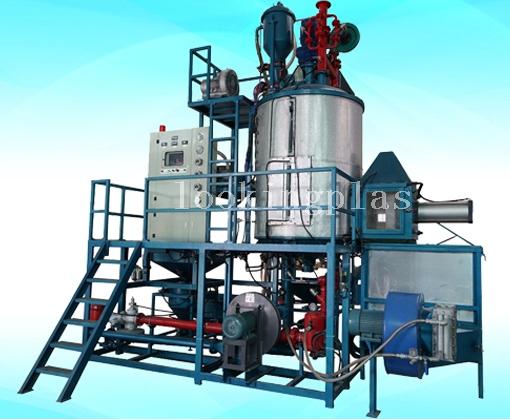

Main Features
1. Insulated stainless steel vessel with (l.3mm laser perforated Stainless Steel steam venting plate. It reaches above 85% permeability.
2. Full automatic operation is realized by PLC with touch screen. Advanced data memory function can retrieve batching data of various type pre-expansion materials.
3. Automatic material transport feeding screw and electronic weighing device.
4. Close pre-expander vessel with balance flue double venting outlets. Precious controlling valves provide accurate pressure and temperature. Pre-expanding level is controlled by high performance inductive proximities switches.
5. High Performance pre-expander is equipped with complete stainless steel fluidizing bed to ensure stabilization of beads before transport to silos for ageing. It combines with drying compartment, sieving unit, de-lumper and material transport station.
6. Even density distribution with less than l.5% tolerance.
Description | Unit | FK-BP650 | FK-BP850 | FK-BP1150 | FK-BP1400 |
Expansion Vessel | Diameter | mm | 650 | 850 | 1150 | 1400 |
Actual Volume | m3 | 0.45 | 0.94 | 1.81 | 3 |
Useable Volume | m3 | 0.32 | 0.87 | 1.66 | 2.48 |
Steam | Inlet | R | 2" | 3" | 4" | 4" |
Pressure Reducing Valve | R | 1.5" | 1.5" | 2" | 2.5" |
Pressure | Mpa | 0.5-0.7 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
Consumption | kg/cycle | 0.8-1.5 | 1.5-3.8 | 5.5-8 | 10.0-12.0 |
Compressed Air | Inlet | R | 1" | 1.5" | 1.5" | 1.5" |
Pressure | Mpa | 0.6" | 0.6 | 0.6 | 0.6 |
Consumption | m3/cycle | 0.4-0.6 | 0.3-0.4 | 0.5-0.6 | 0.7-0.9 |
Condensate | Drain Outlet | R | 3" | 3" | 4" | 4" |
Vent | Drain Outlet | R | 3" | 3" | 4" | 4" |
Filling System | Material Inlet | R | 3" | 3" | 4" | 6" |
Capacity | 13g/l | kg/hr | 50g/l|1000 | 270 | 400 | 800 |
15g/l | kg/hr | 70g/l|1250 | 360 | 540 | 1260 |
20g/l | kg/hr | 90g/l|1500 | 500 | 720 | 1600 |
25g/l | kg/hr |
| 580 | 900 | 1900 |
Electrical Power | Pre-expander | KW | 5.2 | 8.3 | 11 | 12.5 |
Fluidizing bed |
| 8.1 | 7.74 | 11.74 | 11.74 |
Machine Specification | Pre-expander Dimension | L×W× H(mm) | 2350×1260 ×2617 | 4050×1900 ×4200 | 5110×2160 ×4600 | 5650×2250 ×5400 |
Fluidizing bed Dimension | L×W× H(mm) | 4500×800 ×980 | 4880×1080 ×1160 | 4910×1510 ×1330 | 4900×1510 ×1650 |
Pre-expander Weight | kg | 1100 | 1800 | 2800 | 4200 |
Fluidizing Bed Weight | kg | 500 | 800 | 800 | 1000 |
