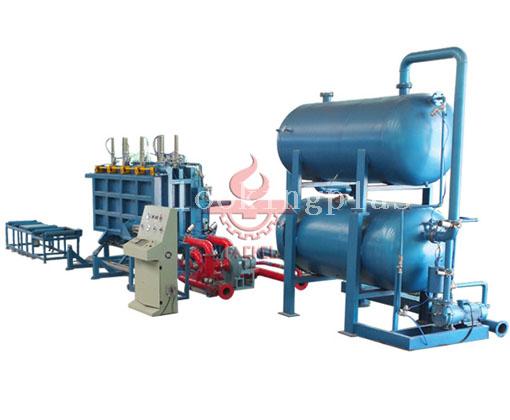

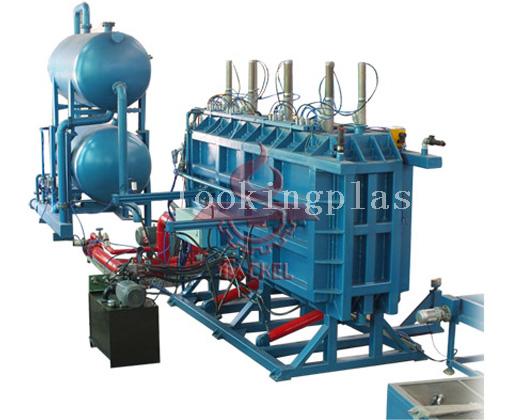

EPS Vacuum Cooling Type Block Moulding Machine 1066 Favorites

Product Categories: EPS Shape Molding Machine
Packaging Details:	Trademark:
Certification:
Payment Terms：
FOB:	HS Code:
Loading Port：

FACKEL MACHINERY( FUJIAN ) COMPANY LIMITED
Company type： Manufacturer	Credit：
Main products：Foam box production equipment, EPS building blocks, ETPU sole molding equipment, EPP molding equipment, EPS board equipment

Get Quotation

Contact Supplier

To：	Zheng
Subject：
Message：	You can also enter 300 characters

Message has been sent successfully.

Post Buying Request

*Subject:
*Matching Rules:	Categories Keywords
*Inquiry Type:
*Keywords:	+ max five keywords
	Added:
	Note:you can add at least one keywod and most five keywords
*Categories:	Add Delete
*Detailed Description:
	Note: Please write your requirement in detail
Attachments：	+ Note: Attachments will help you get accurate solutions Note: Attachments can help you get accurate solution from suppliers
Max quotations want to receive：
	I agree to share my business card with quoted suppliers

Submit Inquiry

No matched supplier

Public souring

Your inquiry has been submitted successfully but 0 supplier matched at present, you will get quotations from Public Sourcing.

Close

Your inquiry has submited successfully and suppliers have been matched by LookingPlas,You will get the quotations as soon as possible.

Close

You had already registered,no need join again.

Registered successfully.

Sorry only Buyer can register the activities.

Item		FK-BMV 2000	FK-BMV 3000	FK-BMV 4000	FK-BMV 5000	FK-BMV 6000
Mould Cavity Size		2040×1240 ×1030(mm)	3060×1240 ×1030(mm)	4080×1240 ×1030 (mm)	6100×1240 ×1030 (mm)	8120×1240 ×1030 (mm)
Block Size		2000×1200 ×1000(mm)	3000×1200 ×1000(mm)	4000×1200 ×1000 (mm)	6000×1200 ×1000 (mm)	8000×1200 ×1000 (mm)
Steam	Entry	DN65	DN65	DN100	DN100	DN150
	Consumption	30-50kg/cycle	50-70kg/cycle	60-90kg/cycle	100-130kg/cycle	120-170kg/cycle
	Pressure	0.8MPa	0.8MPa	0.8MPa	0.8MPa	0.8MPa
Compressed Air	Entry	DN40	DN40	DN40	DN40	DN40
	Consumption	1.5-2m3/cycle	1.8-2.2m3/cycle	2-2.5m3/cycle	2-3m3/cycle	2.5-3m3/cycle
	Pressure	0.6MPa	0.6MPa	0.6MPa	0.6MPa	0.6MPa
Cooling Water	Entry	DN40	DN40	DN40	DN40	DN40
	Consumption	0.2-0.4m3/ cycle	0.4-0.6m3/ cycle	0.6-0.8m3/ cycle	0.8-1 m3/ cycle	1.0-1.2m3/ cycle
	Pressure	0.4-0.6MPa	0.4-0.6MPa	0.4-0.6MPa	0.4-0.6MPa	0.4-0.6MPa
Drainage	Vacuum drain	φ125mm	φ125mm	φ125mm	φ125mm	φ125mm
	Steam vent	φ100mm	φ100mm	φ200mm	φ200mm	φ200mm
	Condensate	φ100mm	φ100mm	φ100mm	φ100mm	φ100mm
	Blower outlet	φ125mm	φ125mm	φ150mm	φ150mm	φ150mm
Throughput (15kg/m3)		5min/cycle	6min/cycle	7min/cycle	8min/cycle	8min/cycle
Electrical Capacity		20.5-24.5KW	20.5-24.5KW	24.5-35.5KW	24.5-35.5KW	35.5-43.5KW
Overall Dimension (L×W×H)		5700×4000 ×2850(mm)	7200×4500 ×3000(mm)	11000×4500 ×3000(mm)	12600×3960 ×2906(mm)	15700×4600 ×3400(mm)
Weight		6000kg	7200kg	12000kg	15000kg	18500kg
Room Height Required		6000mm	6000mm	6000mm	6000mm	6000mm
