Home > Product Categories > High Speed Cup Printer Machine

High Speed Cup Printer Machine 1345 Favorites

Product Categories: Plastic Cup Printing Machine
Packaging Details: Trademark:
Certification:
Payment Terms:
FOB:   HS Code:
Loading Port:Shanghai port
SHANGHAI DAKE MACHINERY CO.,LTD
Company type: Manufacturer Credit:
Main products:曲面印刷机、塑杯卷边机、包装机,计数机

Products' parameter



1、Characteristic of machine

a. Very quick change over of mandrels

b. Automatic equip UV on-mandrel curing system

c. Controlled by frequency conveniently and quickly

d. Checking accurately, conveniently and quickly

e. Control and error check

f. Layer printing effects

g. Corona before printing

e. Color station opening structure

2, Main parts of the equipment

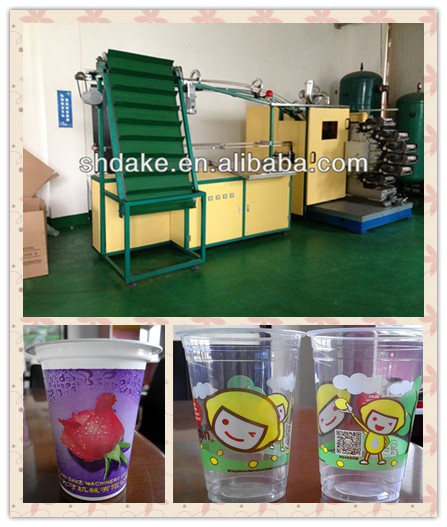

DAKE- Bent Offset Printer for cups is the type of machine which enter into cups by 45 degrees, and lay cups levelly in a line, standard printing. It is widely used for plastic cups, bowls, and barrel as well as pipes and so on. The whole device is composed of the feeding frame, in&out-cup frame, separate tanks, performance dealing, oil ink drying and main head of the machine etc.

3,Main Technical parameters

Model

DAKE-100

Colors

6 or 9

Total power

25KW

Cup size

Dia40*h30mm-dia110*h180mm

Air consumption

0.9m³/min

Cup taper

2°-10°

Cup rim

Dia40-110mm

Printing area max

Dai95*h140mm

· Automatic Grade

Automatic

Plate Type

Letterpress

Printing speed highest

400pcs/min

Curing system

Location UV

Machinery size

5.5m*2.5m*2.2m

Weight

4.8T

4,Others

Place of origin

Shanghai, China (Mainland)

Shipment

FOB to SHANGHAI PORT

Payment

By T/T or Cash

Delivery Date

30 Days

After-sales Service Provided

Engineers available to service machinery overseas

Shanghai DAKE Machinery co., ltd

ADD:No.4685Fujin Road, Baoshan District, Shanghai .China

Fax:0086-21-36133258

Tel:0086-21-56680978
