SGE2319-TL Single Needle-bar Warp Knitting Machine
Purpose and feature of the machine

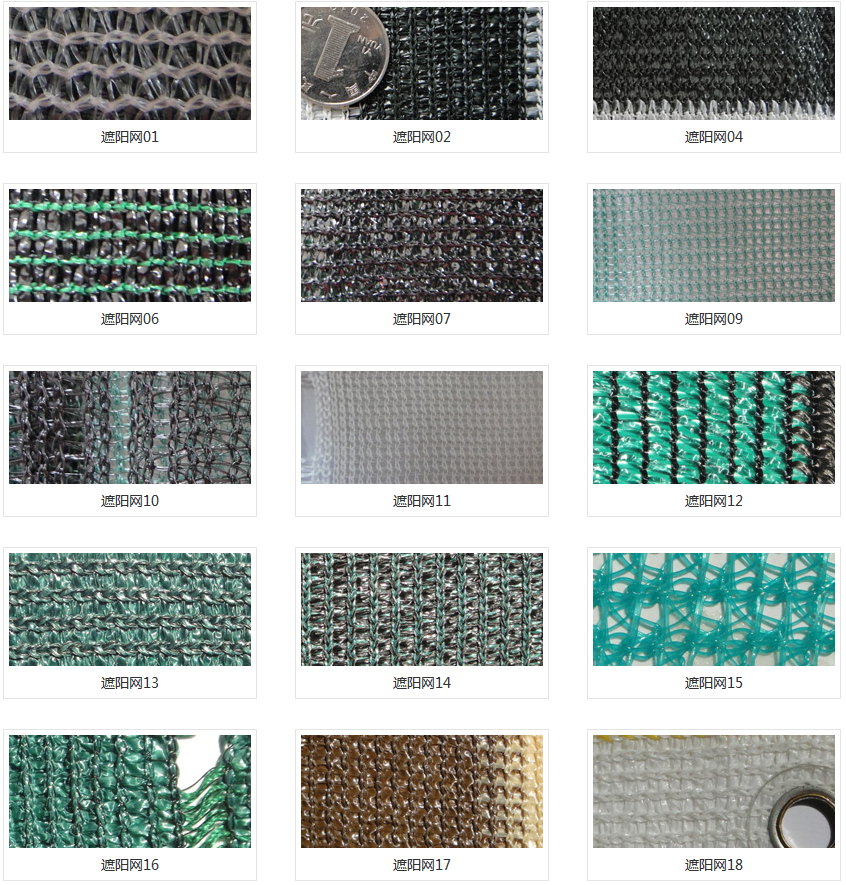

This high-performance single needle-bar Raschel warp knitting machine has been developed for many kinds ol net fabrics such as knotless fishing net,protective net,purse net,olive net,shading net and garment net.
The machine is equipped with the opened cam gearing to drive the knitting elements and the 3-roller positive yarn let-off system.
◆Technical Data
Working needles:Latch needles(the needle can be mounted on bed in block or inserted separately)
Machine gauge:E6,E7,E8,E9,EI 2,E14,E16,
Number of guide bars:2-8
Nominal width:42",80",110",125",135",150",180",195",220",260"
Fabric batching device:2 rollers with friction drive
4 rollers with friction drive center shaft drive
2 rollers with friction drive,separately-standing
center shaft driven.separately-standing
Machine Type | Machine Size(L×W×H)(mm) | Machine Weight(Kg) | Power Supply(KW) | MachineSpeed(rpm) |
Main Moto | Inching Moto |
SGE2319-80TL | 3600×1700×2300 | ~4200 | 3 | 0.37 | 200-550 |
SGE2319-135TL | 5100×1700×2500 | ~4800 | 3 | 0.37 | 200-550 |
SGE2319-150TL | 5500×1700×2500 | ~5200 | 3 | 0.75 | 200-550 |
SGE2319-180TL | 6300×1700×2500 | ~7500 | 5.5 | 0.75 | 200-550 |
SGE23l9-220TL | 7300×1700×2500 | ~9500 | 5.5 | 1.5 | 200-450 |
SGE2319-260TL | 8200×1700×2500 | ~11000 | 7.5 | 1.5 | 200-450 |
