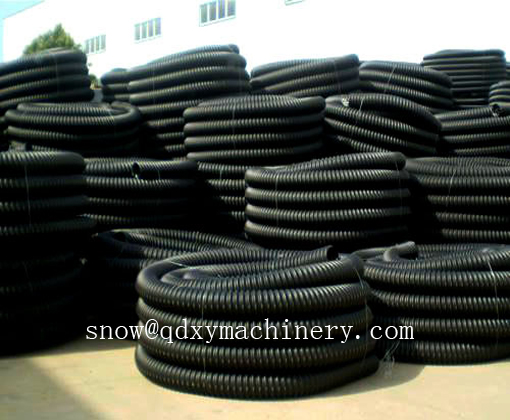

This single-wall corrugated pipe machine (plastic extension flexible pipe machine) can be used to produce corrugated pipes of PP PE continuously, as well as PA and PVC corrugated pipes.
They are widely used for making auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.
Main equipment

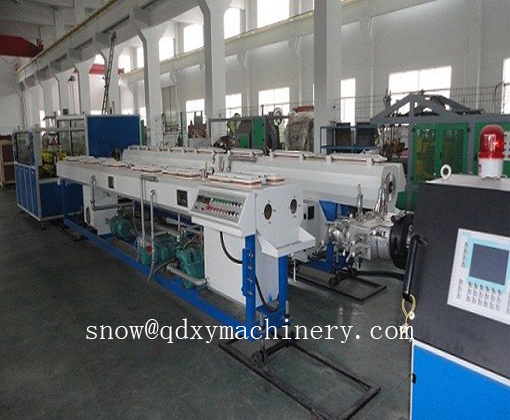

Extruder, Mold Blocks, Corrugated Forming Machine, Cooling Equipment,Counting Machine and Auto winding system.
Main technical parameter:
Diameter Scope | 4.5-9 mm | 9-32 mm | 16-63 mm |
Main Extruder | SJ-30 | SJ-45 | SJ-65 |
L/D | 30:1 | 28:1 | 30:1 |
Output kg/h (kg/h) | 10 | 40 | 80 |
Main Motor (KW) | 2.2 | 11 | 18.5 |
Corrugator Power (KW) | 1.1 | 1.5 | 2.2 |
Mould Block Pairs | 40 | 44 | 44 |
Cooling Type | Water and air cooling |
Line Speed (m/min) | 8-16 | 6-12 | 6-12 |
Counting Type | Sensing counting |
Winding Type | Automatic/Manual |
