Description of Energy Saving Plastic Single Screw Extruder:
Introduction of high performance single screw extruder
FSJ Series high performance single screw extruders designed by our company adopts European latest advanced technology. The single screw extruder is mainly used to process PP, PE, PPR, ABS and other plastics. Equipped with auxiliary machines, it can produce profiles, pipes, sheets, granulations and other plastic products.
Characteristics of Our Single Screw Extruder:
1. Screw in low speed, and each turn a high output, and realize the low speed and efficiency.
2. FRIEND single screw extruder firstly achieves that the output of extruder is direct proportion to the speed of per turn, can measuring extrusion.
3. The motor power is making full use of, every KW motor power realize production 4.5-5.0 kg.
4. Double separation thread and efficient mixing rubber section, can ensure material plastication completely, and enhance mixing of master batch.
5. Adopt the most advanced electromagnetic heating circle, electricity utilization rate 98%, 50% for saving energy.
6. Adopt digital control, PLC program control and PCC industrial computer remote control three kind of ways, can meet different user requirements.
7. Material of screw and barrel: 38CrMoAlA, nitrogen quenched which the thickness layer 0.4-0.7mm; Hardness of screw barrel: >940 HV;
8. Adopt Electric Parts (Motor/Inverter/breaker/relay and so on) which is SIEMENS/OMRON/SCHNEIDER. It can keep machine operation stable and improve the extruder’s output.

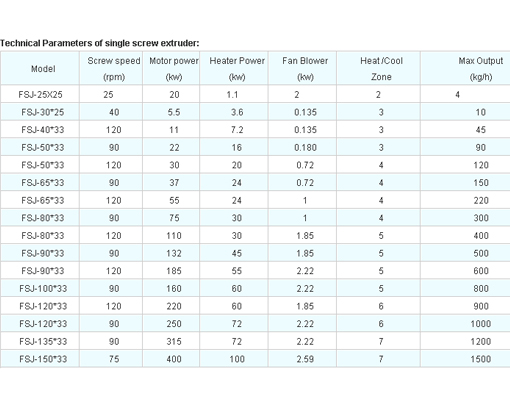

Technical Parameters of single screw extruder:
Model | Screw speed (rpm) | Motor power (kw) | Heater Power (kw) | Fan Blower (kw) | Heat /Cool Zone | Max Output (kg/h) |
FSJ-25X25 | 25 | 20 | 1.1 | 2 | 2 | 4 |
FSJ-30*25 | 40 | 5.5 | 3.6 | 0.135 | 3 | 10 |
FSJ-40*33 | 120 | 11 | 7.2 | 0.135 | 3 | 45 |
FSJ-50*33 | 90 | 22 | 16 | 0.180 | 3 | 90 |
FSJ-50*33 | 120 | 30 | 20 | 0.72 | 4 | 120 |
FSJ-65*33 | 90 | 37 | 24 | 0.72 | 4 | 150 |
FSJ-65*33 | 120 | 55 | 24 | 1 | 4 | 220 |
FSJ-80*33 | 90 | 75 | 30 | 1 | 4 | 300 |
FSJ-80*33 | 120 | 110 | 30 | 1.85 | 5 | 400 |
FSJ-90*33 | 90 | 132 | 45 | 1.85 | 5 | 500 |
FSJ-90*33 | 120 | 185 | 55 | 2.22 | 5 | 600 |
FSJ-100*33 | 90 | 160 | 60 | 2.22 | 5 | 800 |
FSJ-120*33 | 120 | 220 | 60 | 1.85 | 6 | 900 |
FSJ-120*33 | 90 | 250 | 72 | 2.22 | 6 | 1000 |
FSJ-135*33 | 90 | 315 | 72 | 2.22 | 7 | 1200 |
FSJ-150*33 | 75 | 400 | 100 | 2.59 | 7 | 1500 |
Notes:1. Delivery time: In 60 days after receiving the down payment.
2. Terms of payment: 30% down payment and 70% before delivery.
3. Transport mode: by sea
4. Minimum Order Quantity: 1 set
5. Package: In container
6. This price is valid for 30 days.
7. Guarantee period: 12 months
8. The buyers should afford the installation costs. And the seller does not offer the site installation and debugging.
