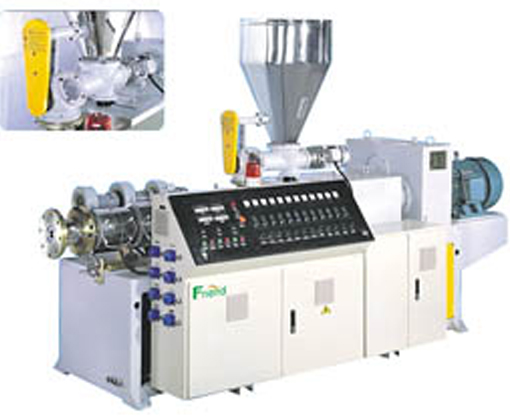

Description of High Efficiency PVC Conical Twin Screw Extruder:
FSJSZ series conical twin screw extruder designed by Qingdao Friend Plastic Extrusion Technology Co.,Ltd., absorbing European expert’s design concept. Combined with auxiliary equipment, can directly use PVC powder to produce pipes, sheets, plates, profiles and other plastic products.
Characteristic:
1.Adopt frequency and DC speed controller, Stable and low power consumption

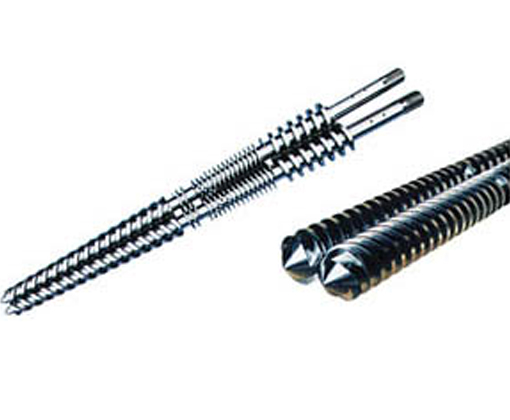

2. Adopt conical screw, Efficient producing, fine plastication,low noise
3. Adopt hard tooth helical reduction gear, smoothly transmission low noise& long operating life
4. Adopt reverse oblique conical gear, strong transmission,high precision in adjusting,low recoil and fine anti-glue function
5. Adopt cast aluminum heater system and forced wind cooling system, even in heater, fine function in cooling
6. Adopt intelligent thermoswitch and PLC to control the temperature,high precision,and easy adjusting
7. Adopt foreign or native famous electronic device(Such as Siemens, Schneider, Fujifilm, Omron, )
Technical parameters:
Item | SJZ-51/105 | SJZ-65/132 | SJZ-80/156 | SJZ-92/188 |
Screw diameter(mm) | 51/105 | 65/132 | 80/156 | 92/188 |
Screw amount | 2 | 2 | 2 | 2 |
Screw turning | Different direction forth |
Screw rotate speed (r/min) | 1-30 | 1-34.7 | 1-36.9 | 1-32.9 |
Screw effective working length(mm) | 1200 | 1440 | 1800 | 2500 |
Main motor power (kw) | 22 | 37 | 55 | 90 |
Barrel heating power(kw) | 18 | 24 | 38 | 86.8 |
Production capacity (kg/h) | 80-140 | 250-300 | 320-450 | 500-600 |
Machine center high(mm) | 1000 | 1000 | 1000 | 1200 |
Net weight(kg) | 3500 | 4000 | 5000 | 10000 |
Exterior measure
(long,wide,high) | 3620
1050
2157 | 4235
1520
2450 | 4750
1550
2460 | 6725
1550
2814 |
Notes:
1. Delivery time: In 60 days after receiving the down payment.
2. Terms of payment: 30% down payment and 70% before delivery.
3. Transport mode: by sea
4. Minimum Order Quantity: 1 set
5. Package: In container
6. This price is valid for 30 days.
7. Guarantee period: 12 months
8. The buyers should afford the installation costs. And the seller does not offer the site installation and debugging.
