Description of Parallel Twin Screw Plastic Extrusion Machine:
FPS SERIES PARALLEL TWIN SCREW EXTRUDERS
Superior performance of Friend parallel twin-screw to achieve new leaps of PVC procession technology:
1. Advanced and unique screw ensures the extrusion of a variety of PVC, soft PVC, transparent PVC, etc.
2. Friend series parallel twin-screw extruder has the extremely great power due to the most advanced gear box and triaxial linkage full-form gear box:
3. Excellent coordination between screw and gear box realizes the high-quality plasticization of parallel twin-screw.

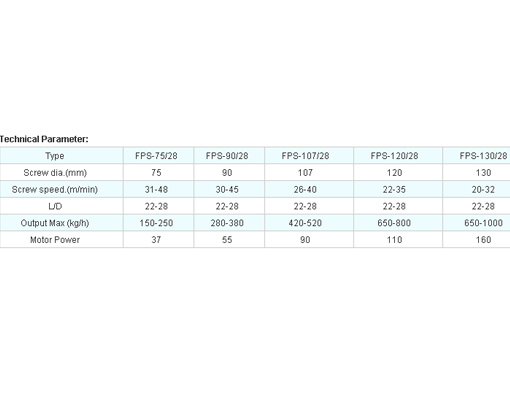

Technical Parameter:
Type | FPS-75/28 | FPS-90/28 | FPS-107/28 | FPS-120/28 | FPS-130/28 |
Screw dia.(mm) | 75 | 90 | 107 | 120 | 130 |
Screw speed.(m/min) | 31-48 | 30-45 | 26-40 | 22-35 | 20-32 |
L/D | 22-28 | 22-28 | 22-28 | 22-28 | 22-28 |
Output Max (kg/h) | 150-250 | 280-380 | 420-520 | 650-800 | 650-1000 |
Motor Power | 37 | 55 | 90 | 110 | 160 |
Notes:
1. Delivery time: In 60 days after receiving the down payment.
2. Terms of payment: 30% down payment and 70% before delivery.
3. Transport mode: by sea
4. Minimum Order Quantity: 1 set
5. Package: In container
6. This price is valid for 30 days.
7. Guarantee period: 12 months
8. The buyers should afford the installation costs. And the seller does not offer the site installation and debugging.
