Description of Three Stage Venting and Filtering Plastic Extruder:
HIGH EFFICIENCY AND ENERGY SAVING THREE STAGES VENTING AND FILTING EXTRUDER
High efficiency and energy saving three stages venting and flitting extruder is researched and designed by Qingdao Friend Plastic Extrusion Technology Co., Ltd. which we have obtained a patent. It have the advantages of high efficiency, energy saving and higher output, etc.
Characteristic:
1. It consists of three continuous connected high efficiency single screw extruder.
2. Adopt PLC control and synchronous operation.
3. Adopt Electromagnetic heating system which can save 40% to 50% electric power.
4. All electric parts (breaker/motor/relay /Inverter and so on) is Siemens/Schneider/Omron.
5. Adopt automatic feeding system.
6. Material of screw and barrel are 38CrMoAlA, nitrogen quenched with the thickness layer of 0.4-0.7mm; Hardness >940 HV;
7. The output improved at least two times.
8. This three stages extruder is our company’s patented product.

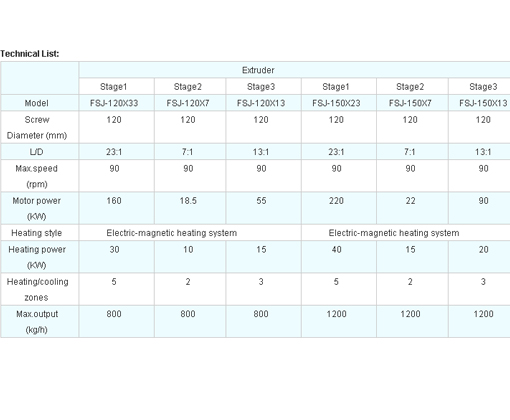

Technical List:
| Extruder |
Stage1 | Stage2 | Stage3 | Stage1 | Stage2 | Stage3 |
Model | FSJ-120X33 | FSJ-120X7 | FSJ-120X13 | FSJ-150X23 | FSJ-150X7 | FSJ-150X13 |
Screw Diameter (mm) | 120 | 120 | 120 | 120 | 120 | 120 |
L/D | 23:1 | 7:1 | 13:1 | 23:1 | 7:1 | 13:1 |
Max.speed (rpm) | 90 | 90 | 90 | 90 | 90 | 90 |
Motor power (KW) | 160 | 18.5 | 55 | 220 | 22 | 90 |
Heating style | Electric-magnetic heating system | Electric-magnetic heating system |
Heating power(KW) | 30 | 10 | 15 | 40 | 15 | 20 |
Heating/cooling zones | 5 | 2 | 3 | 5 | 2 | 3 |
Max.output (kg/h) | 800 | 800 | 800 | 1200 | 1200 | 1200 |
Notes:
1. Delivery time: In 60 days after receiving the down payment.
2. Terms of payment: 30% down payment and 70% before delivery.
3. Transport mode: by sea
4. Minimum Order Quantity: 1 set
5. Package: In container
6. This price is valid for 30 days.
7. Guarantee period: 12 months
8. The buyers should afford the installation costs. And the seller does not offer the site installation and debugging.
