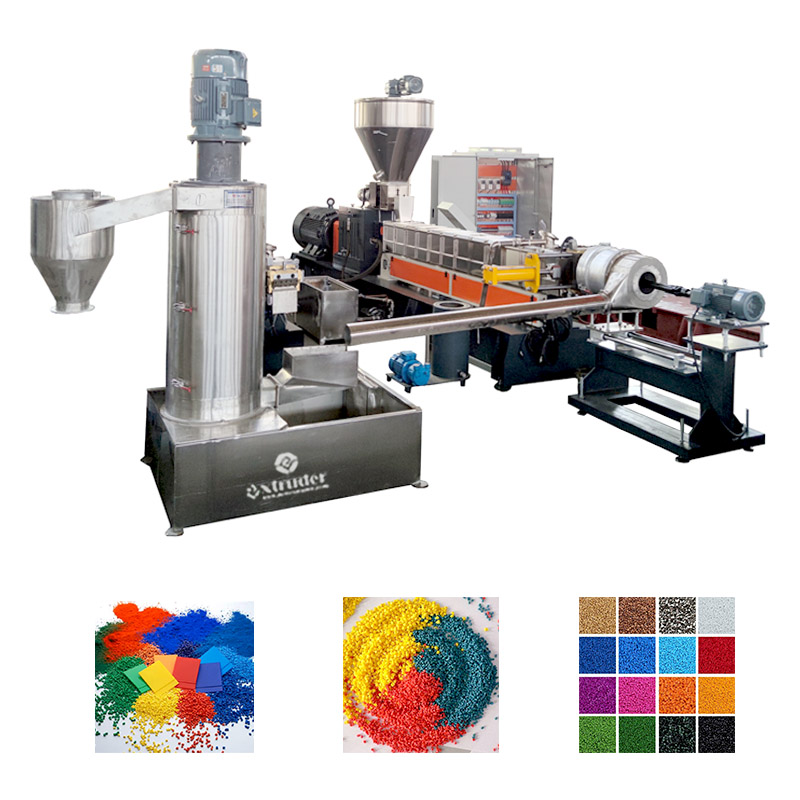

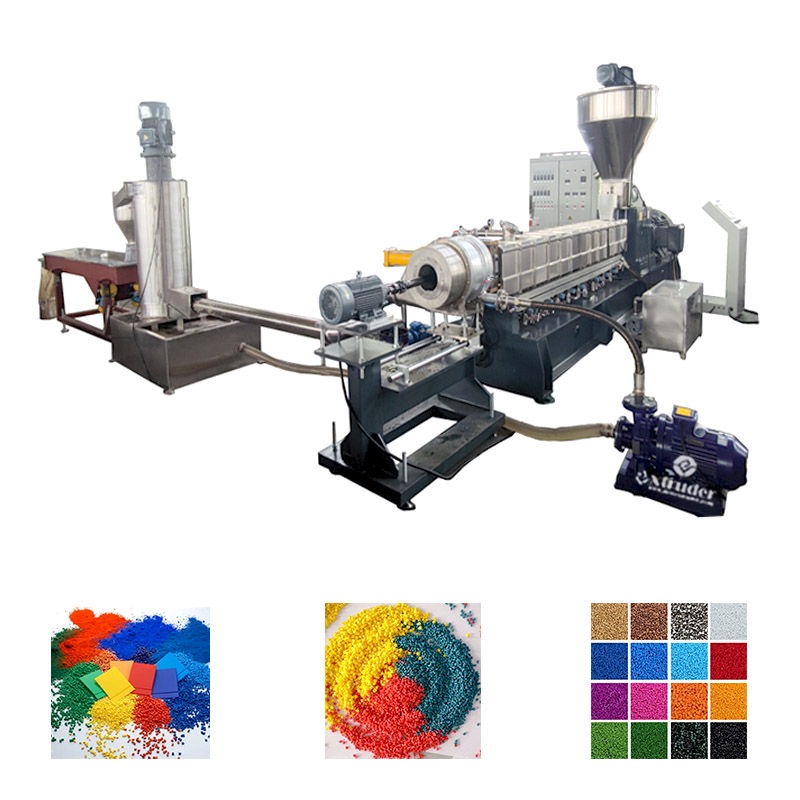

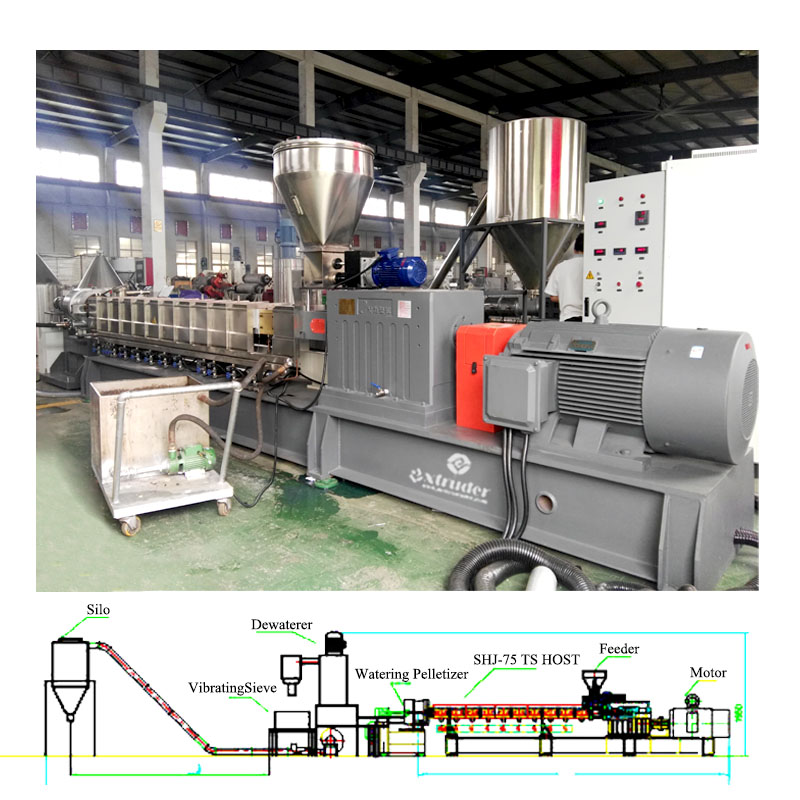

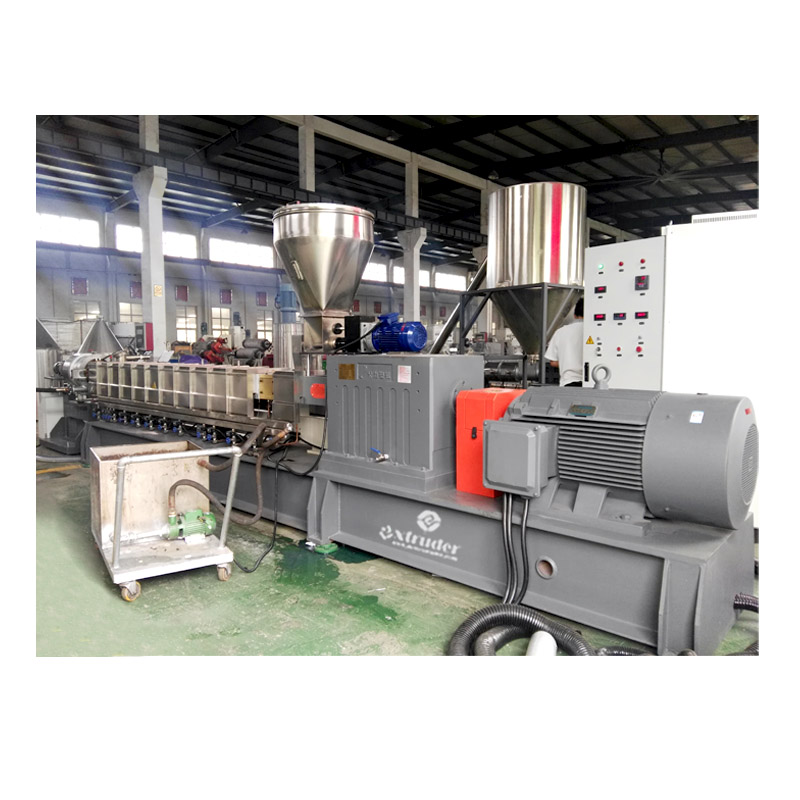

High Torque High Output Capacity SHJ-95B Filler Master Batch Extruder
Application: This twin screw extruder machine is designed for PP + CaCO3 (Calcium Carbonate) powder (high percentage of this powder or BaSO4 powder) added filler masterbatch, high screw speed, and high torque gearbox.
Filler masterbatch plastic extruder High percentage of CaCO3 powder added plastic extruder machine SHJ75G
HS CODE: 8477.2010
Application material : All kinds of resin + CaCO3 powder/ Titaninum Powder/ Chalk powder and etc.;
Main Tech-parameter：
1)Screw diameter： Ф71mm
2)L/D ： 48：1
3)Material of screw and barrel：Wear-resisting
4)Main drive power：250 kw（Siemens-BEIDE made in China . AC）
5)Main drive screw rotate speed： 600 rpm
6)Main drive heating power：88 kw
7)Total install power : ~ kw
8)Capacity ：800~ 1200 kg/h
( Up to user’s raw material formula and technical processing control )
