Advantages: preforms feeded by hand and bottles heated and blowed automatically; no technical requirement from this worker; hourly capacity upto 1500pcs; lower cost than usual automatic machines while enjoying stable perfromance.

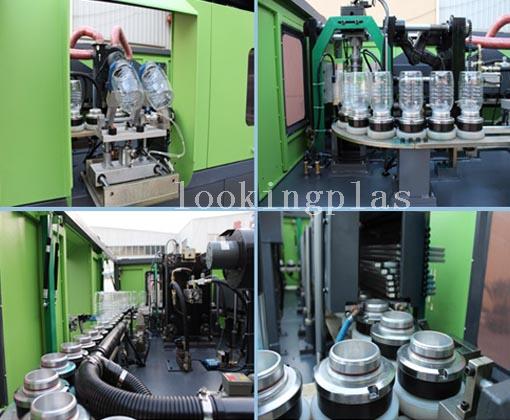

AOK-2000 jar blow molding machine
| Model | Unit | AOK-2000JAR | AOK-2000JAR-L |
| Clamping System | Number of cavitity | cavities | 2 | 2 |
| Calmping unit | kg | 20000 | 20000 |
| Mold stroke | mm | 130 | 160 |
| Stretch stroke | mm | 200 | 250 |
| Bottom stroke | mm | 50 | 50 |
| Cavity pitch | mm | 120 | 138 |
| Heating pitch | mm | 120 | 138 |
| Number of holder | pcs | 56 | 56 |
| Container | Max.container volume | ltr | 1 | 2 |
| Max. outer diameter | mm | 65 | 90 |
| Max.prefrom height | mm | 100 | 120 |
| Max.container diameter | mm | 100 | 125 |
| Max.container height | mm | 200 | 280 |
| Theoretical output | B.P.H | 1200 | 1200 |
| Electrical System | Heating oven | units | 3*12 | 3*12 |
| Box*channel |
| Number of lamp | pcs | 60 | 60 |
| Heating power | kw | 72 | 72 |
| Installed power | kw | 80 | 80 |
| Voltage | voltage | 220V/380V/3phase | 220V/380V/3phase |
| Air System | Operating | kg/c㎡ | 7 | 7 |
| Blowing pressure | mpa | 3.5 | 3.5 |
| High pressure air consuming | l/min | 2000 | 3200 |
| Power | kw | 18 | 36 |
| Chiller System | Temperature | ℃ | 10-15 | 10-15 |
| Pressure | mpa | 0.3-0.5 | 0.3-0.5 |
| Flow rate | l/min | 40 | 40 |
| Heating power | hp | 5 | 5 |
| Machine | L*W*H(Machine dimension) | m | 3.3*2.0*2.2 | 3.8*2.0*2.2 |
| Machine weight | kg | 4000 | 4500
|
