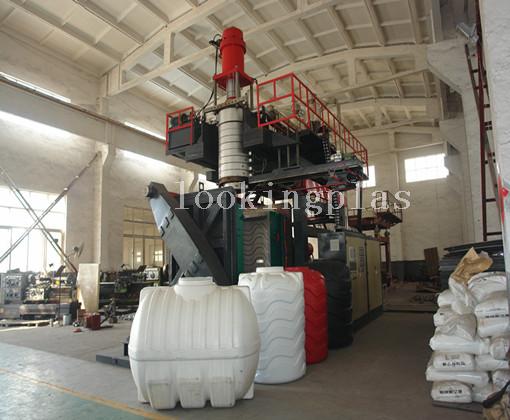

Features of blow molding machinery:
l Three layers of blow molding machinery can make two/one layer of water tank by the same machinery
l All electrical components using SIEMENS brand name.
l Using SERVO motor drive on extruders to adjust speed quickly for changing parison weight, screws with special design.
l Two pulling rods clamping structure with stable operation
l Two hydraulic stations by SERVO drive to acquire energy saving
l PLC touch screens(wall thickness and machinery operation touch)
l Head die with spiral flow channel design without weld point
l Pneumatic system has function of silencing
| 3000L blow molding machine parameter |
| No |
| Specifications | 3000Liters |
| Layers of finished products |
| 2-4layers |
| Material |
| HDPE HMW |
| 1 | Extruders | Screw Diameter | 100/100/100/110mm |
| Plasticinzing Capacity | 550-580kg/h |
| L/D | 32:1 |
| Gear Box Type | Hard surface |
| Extruder Drive Motor | 90kw |
| Heating power | 110kw |
| Max Screw Speed | 60RPM |
| 2 | Accumulator Die Head | Accumulator capacity | 110L |
| Inverter | Siemens |
| Max. parison weight | 85KG |
| 3 | Moulding Clamping Unit | Clamping platen size | 2100*2200mm |
| Max mold size | 1900*2300mm |
| Mould Clamping Force | 2500KN |
| Mould Thickness | 1000-2200mm |
| 4 | Electrical Control Panel | Thickness controller | 100-300points |
| Main Operation Panel | Siemens |
| 5 | Hydraulic System | Oil Tank Capacity | 1200L |
| 6 | Weight of Machine |
| 63T |
| Size of Machine | [L*W*H](M) | 12m*4.5m*7.2m |
| 7 | Total power | kw | 465kw |
| Average power Consumption | kw | 245kw |
Output
| Output for 3000L blow molding machine |
| Commdly | Output | Unit | Weight | Unit |
| 1000L Mold | 12 | PC/H | 18 | KG |
| 1500L Mold | 9 | PC/H | 26 | KG |
| 2000L Mold | 8 | PC/H | 36 | KG |
| 2500L Mold | 7 | PC/H | 42 | KG |
| 3000L Mold | 6 | PC/H | 50 | KG |
FAQ
Q: Your company is a transactional company or an industrial manufacture factory?
A: We have independent technical team who focus on making machines, all the products are made by our own factory.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
If you want to get more detailes information about our products , our company AND our price. Please do not hesitate to constact us.
We'll give you the answers in the first time.~~
