Features of blow molding machinery:

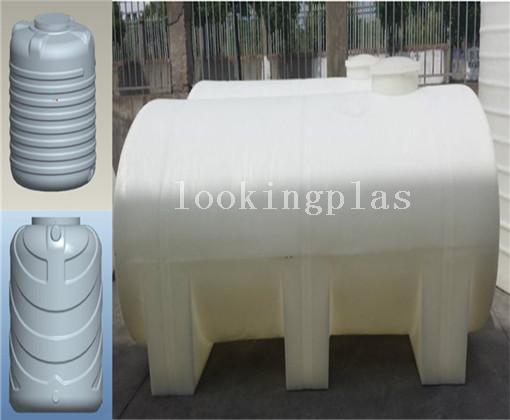

l Three layers of blow molding machinery can make two/one layer of water tank by the same machinery
l All electrical components using SIEMENS brand name.
l Using SERVO motor drive on extruders to adjust speed quickly for changing parison weight, screws with special design.
l Two pulling rods clamping structure with stable operation
l Two hydraulic stations by SERVO drive to acquire energy saving
l PLC touch screens(wall thickness and machinery operation touch)
l Head die with spiral flow channel design without weld point
l Pneumatic system has function of silencing
| 5000L blow molding machine parameter |
| No |
| Specifications | 5000Liters |
| Layers of finished products |
| 2-4layers |
| Material |
| HDPE HMW |
| 1 | Extruders | Screw Diameter | 100/100/100/100mm |
| Plasticinzing Capacity | 950kg/h |
| L/D | 32:1 |
| Gear Box Type | Hard surface |
| Extruder Drive Motor | 135kw |
| Heating power | 125kw |
| Max Screw Speed | 50RPM |
| 2 | Accumulator Die Head | Accumulator capacity | 180L |
| Inverter | Siemens |
| Heating power | 120KW |
| Max. parison weight | 170KG |
| 3 | Moulding Clamping Unit | Clamping platen size | 2500*2700mm |
| Max mold size | 2350*2800mm |
| Mould Clamping Force | 3600KN |
| Mould Thickness | 1500-2000mm |
| 4 | Stretching and Blowing Unit | Spreading stroke | 400-1200mm |
| 5 | Electrical Control Panel | Thickness controller | 100or300points |
| Main Operation Panel | Siemens |
| 6 | Hydraulic System | Oil Tank Capacity | 1500L*2 |
| 7 | Weight of Machine |
| 140T |
| Size of Machine | [L*W*H](M) | 15m*13m*8.5m |
| 8 | Total power |
| 575kw |
| Average power Consumption |
| 285kw |
FAQ
Q: Your company is a transactional company or an industrial manufacture factory?
A: We have independent technical team who focus on making machines, all the products are made by our own factory.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
If you want to get more detailes information about our products , our company AND our price. Please do not hesitate to constact us.
We'll give you the answers in the first time.~~
