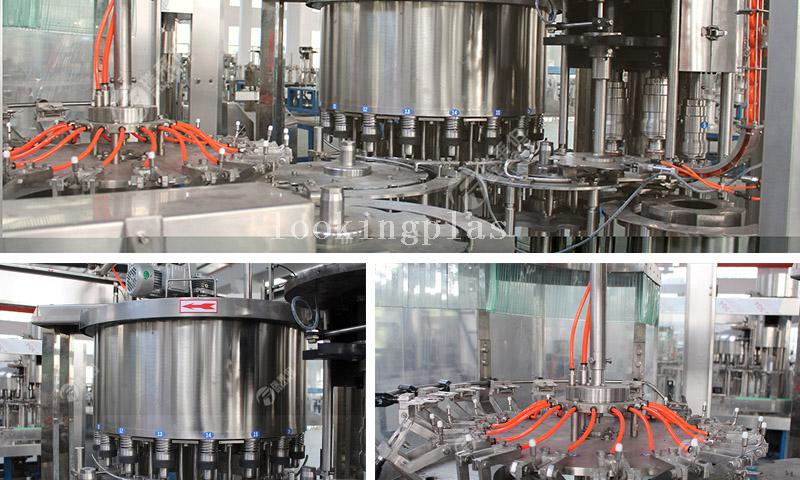

This hot filling equipment adopts bottle neck holding transmission technology to realize fully automatic rinsing , filling and capping . It is equipped with perfect temperature to realize fully automatic rinsing, filling and capping. It is equipped with perfect temperature control system , automatic cleaning system and control program . Each machine element that contacts with the liquid is made of high quality stainless steel and food-grade rubber .
Model | CGFR 16-12-6 | CGFR 18-18-6 | CGFR 24-24-8 | CGFR 32-32-10 | CGFR 40-40-12 | CGFR 50-50-15 |
Bottle Washing No. | 16 | 18 | 24 | 32 | 40 | 50 |
Filling No. | 12 | 18 | 24 | 32 | 40 | 50 |
Capping No. | 6 | 6 | 8 | 10 | 12 | 15 |
Rated Production Capacity ( 500ml ) | 5000bph | 6000bph | 8000bph | 12000bph | 15000bph | 20000bph |
Installed Capacity (KW ) | 3.5 | 4 | 4.8 | 7.6 | 8.3 | 9.6 |
Overall Size | 2450*1800*2400 | 2650*1900*2400 | 2900*2100*2400 | 4100*2400*2400 | 4550*2650*2400 | 5450*3210*2400 |
