Specification Sheet:
Application:
The V-S feeder is designed to provide volumetric
feeding for a wide variety of materials including pellets,
granules and free flowing powders
Design:
Single screw feeder with interchangeable feed screws is
mounted on painted steel base plate. All material contact
parts are stainless steel. The feeder is easily disassembled for
cleaning or change-over. Special design of feeding bowl is
unique.
Controller :
Motor speed regulator will be frequency inventor. Frequency
invertor can be supplied by customer.
Actual feeder screws are determined based on the material characteristics. The following is estimated feeding rates for free flowing materials. For feeding rates at either end of the range, feeding testing is recommended.
Feed Model | Feed rates | Material | Asymmetrical Hopper | Symmetrical Hopper |
V-S60 | 5-1,200 L/h | Pellet, free flowing powder, etc. | 40L/80L/120L/150L | 10L/40L/80L/120L/180L |

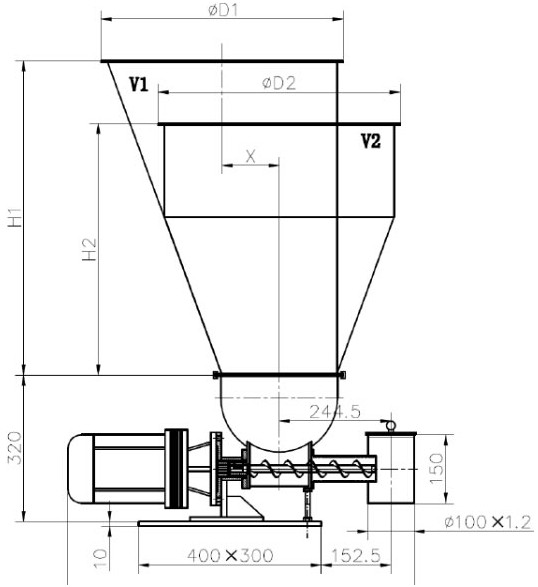

Configuration
Type | Asymmetrical Hopper | Symmetrical Hopper |
V1(L) | H 1 | ¢D1 | X | V2(L) | H 2 | ¢D 2 |
S60 | 40 | 475 | 430 | 75 | 10 | 207 | 280 |
80 | 690 | 530 | 125 | 80 | 550 | 530 |
120 | 795 | 630 | 175 | 120 | 653 | 630 |
150 | 962 | 630 | 175 | 180 | 866 | 630 |
