Brief introduction:

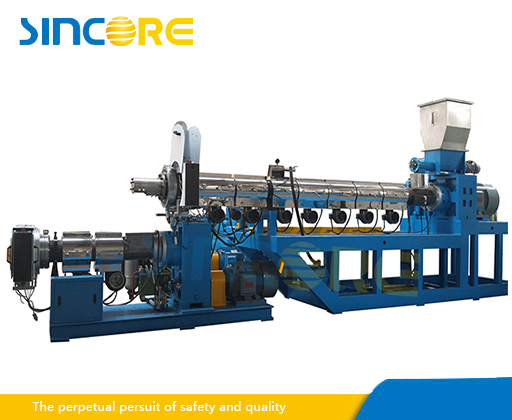

Double stage brace type granulation production line is mainly consisted of the following machinery: feeding system, extruder, Double-station hydraulic screen changer, strand cutting mould, cooling tank, dryer, cutter, air blowing system(feeding and drying system), etc..
Application:
This recycling production line is the best choice for recycling waste plastic flakes, crushed material and film, etc.
|
型号/Model
|
SJ1215B
|
SJ1515B
|
SJ1516B
|
|
主电机功率/Main Motor Power
|
110kw
|
160kw
|
160kw
|
|
第二电机功率/Second Motor Power
|
22kw
|
37kw
|
55kw
|
|
螺杆直径/Screw Diameter
|
120/150mm
|
150/150mm
|
150/160mm
|
|
螺杆旋转/Granulation cutting type
|
Brace type
|
Brace type
|
Brace type
|
|
产量/Capacity
|
250-300kg/h
|
400-500kg/h
|
500-600kg/h
|
|
备注：以上规格参数如有变更，恕不另行通知 Remark：Specifications and standard equipment are subject to change without notification
|
|
平行双螺杆拉条造粒生产线Parallel twin screw granulation production line
|
|
型号/Model
|
PS42B
|
PS50B
|
PS63B
|
PS72B
|
PS85B
|
PS92B
|
|
公称直径/Diameter
|
41.2mm
|
50.5mm
|
62.4mm
|
71mm
|
82mm
|
91mm
|
|
长径比/L:D
|
32-68
|
32-68
|
32-68
|
32-68
|
32-68
|
32-68
|
|
主电机功率/Main Motor Power
|
22-30-37KW
|
37-45-55KW
|
55-75-90KW
|
90-110-132-160KW
|
160-200KW
|
135-250KW
|
|
螺杆转速/ Screw Speed
|
500-800RPM
|
500-800RPM
|
500-800RPM
|
500-800RPM
|
500-600RPM
|
500-600RPM
|
|
扭矩等级/Torque Rating
|
5.7T/A³
|
5.8T/A³
|
5.8T/A³
|
5.7T/A³
|
5.7T/A³
|
5.8T/A³
|
|
造粒方式/Granulation Type
|
Brace type
|
Brace type
|
Brace type
|
Brace type
|
Brace type
|
Brace type
|
|
产量/Capacity
|
50-120kg/h
|
80-200kg/h
|
150-350kg/h
|
300-600kg/h
|
600-1000kg/h
|
840-1600kg/h
|
|
备注：以上规格参数如有变更，恕不另行通知 Remark：Specifications and standard equipment are subject to change without notification
|
