Product Description
The water cooled chiller is applied to plastics industry to precisely control molds' temperature so that molding cycle can be reduced and quality would be improved. Also MIC series can be applicable for electronic and machinery manufacturing to ensure normal operation temperature for devices.
Configurations:
1.Panasonic brand scroll compressor
2. TAIWAN Minamoto brand water pump
3.Adopt precise Taiwan PUMP P.I.D.temperature controller with an accuracy of 0.1 degree
4. Dry Filter:USA ALCO
5. EXPANSION VALVE: EMERSON USA
6. SIEMENS Electrics
7.Adopt R22 regrigerant or R407C environmenlty type refrigerant
8. Stainless steel water tank
Product Specification
Model
| MIC
|
| 5W | 10W | 15W | 20W | 25W | 30W |
| Freezing Capacity(KW) | 17.2 | 34.4 | 51.6 | 68.8 | 86 | 103.2 |
| Compressor Type | Scoll
|
| Refrigerant | R22/R407c(Can be Customized)
|
| Evaporator Type | Tube-in-shell Style
|
| Condenser Type | Tube-in-shell Style
|
| Water Tank(L) | 61 | 79 | 170 | 170 | 250 | 250 |
| Pump Power | 0.75KW | 1.5KW | 1.5KW | 2.2KW | 3KW | 4KW |
| Pump Flow Rate(L/min) | 75 | 120 | 208 | 330 | 330 | 550 |
| Power Supply | AC380V, 3Phase, 50Hz
|
| Dimensions | 1400x655x1135 | 1700x755x1285 | 2100x1005x1450 | 2100x1005x1450 | 2400x1005x1450 | 2400x1005x1450 |

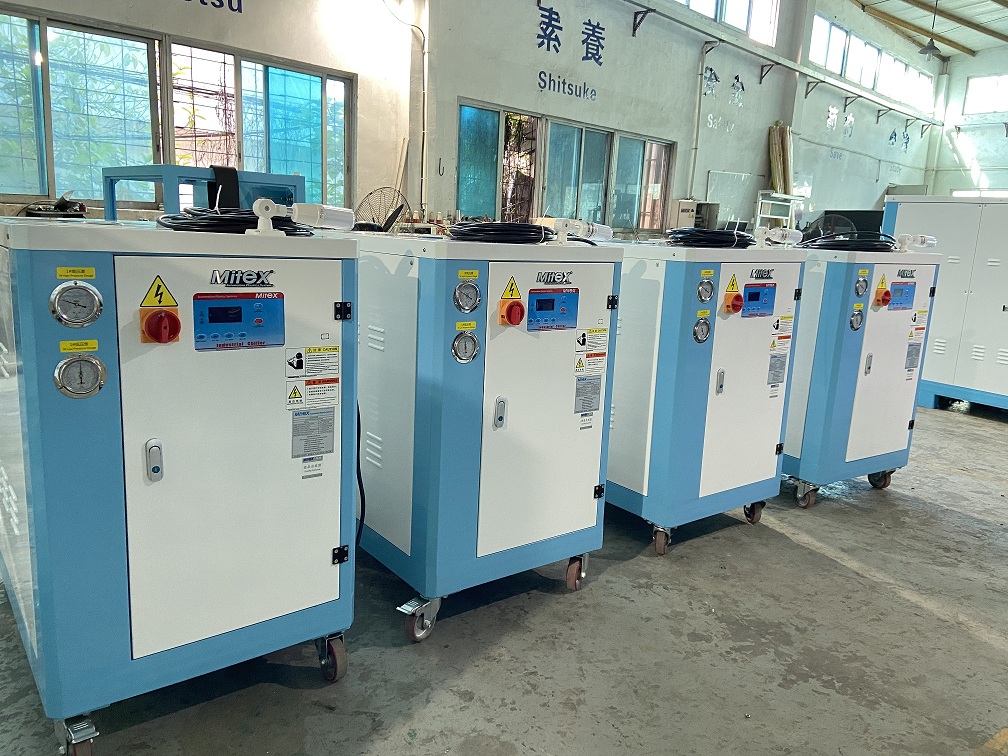

Customer Cases
