Product Description

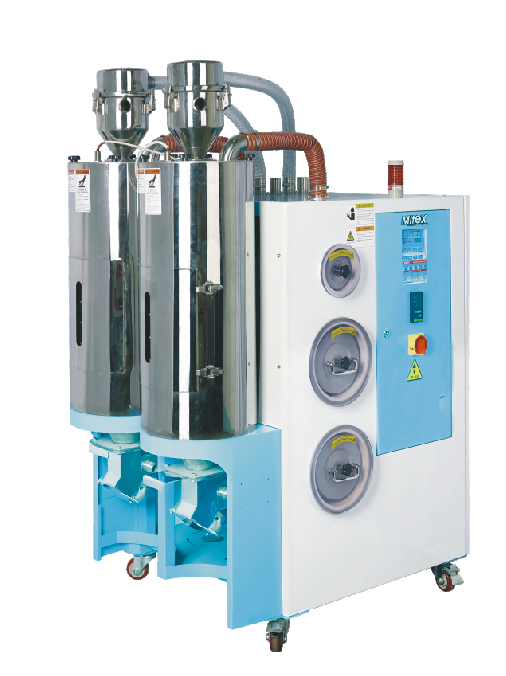

MD-CH series dehumidification dryer feeder integrates three function of dehumidification, drying and two-stage feeding, and is especially suitable for engineering plastic raw materials with strong hygroscopicity. Such as PA, PET, PC, PBT, etc. Among them, optical grade MD-CH-OG models can be used in the process application of optical grade products such as lenses, LCD light guide plates, optical discs, etc. Under ideal conditions, the dew point can reach at -40 ℃.
Unique Design Of One-driven-two type.
One machine matched with multiple molding machines.
Contained all functions of single-hopper dryer.
Cost Saving, Energy Saving, Space Saving
Product Specification
Model
| MD-CH
|
| 30 | 50 | 75 | 100 | 150 | 200 | 300 | 400 |
| Hopper Volume(kg) | 25 | 50 | 75 | 100 | 150 | 200 | 300 | 400 |
| Air Flow(m3/h) | 50 | 80 | 80 | 120 | 150 | 200 | 300 | 400 |
| Process Heater(kw) | 3 | 3 | 7 | 7 | 7 | 10 | 10 | 45 |
| Process Blower(kw) | 0.4 | 0.4 | 0.4 | 0.75 | 1.1 | 1.5 | 2.2 | 4 |
| Regen. Heater(kw) | 3 | 3 | 3 | 7 | 7 | 7 | 7 | 7 |
| Regen. Blower | 0.25 | 0.25 | 0.25 | 0.25 | 0.4 | 0.4 | 0.75 | 0.75 |
| Conveying Blower(kw) | 1.1 | 1.1 | 1.1 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 |
| Coveying Hose(Inch) | 1.5" | 1.5" | 1.5" | 1.5" | 1.5" | 1.5" | 1.5" | 1.5” |
| Diemensions(mm) | 1020x850x1750 | 1085x900x1930 | 1085x900x2000 | 1290x980x2120 | 1425x935x2150 | 1425x935x2150 | 1720x1200x2350 | 1720x1200x2350 |
| Net Weight(kg) | 310 | 340 | 360 | 420 | 550 | 600 | 750 | 8 |
