Home > Product Categories > Oil type mold temperature controller heater for injection molding

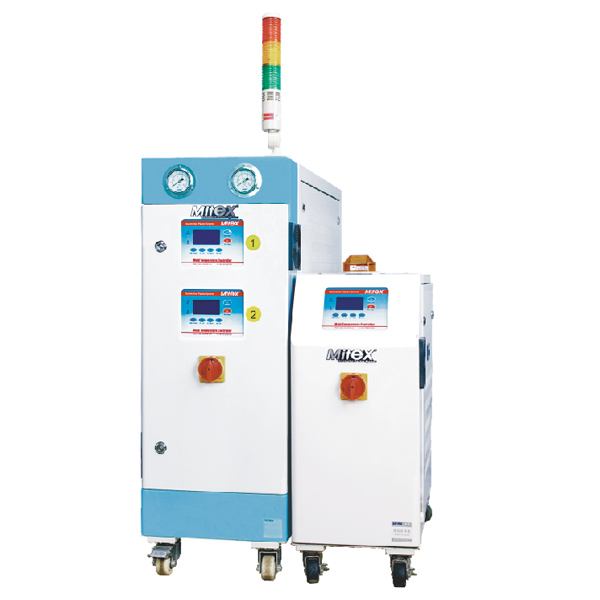

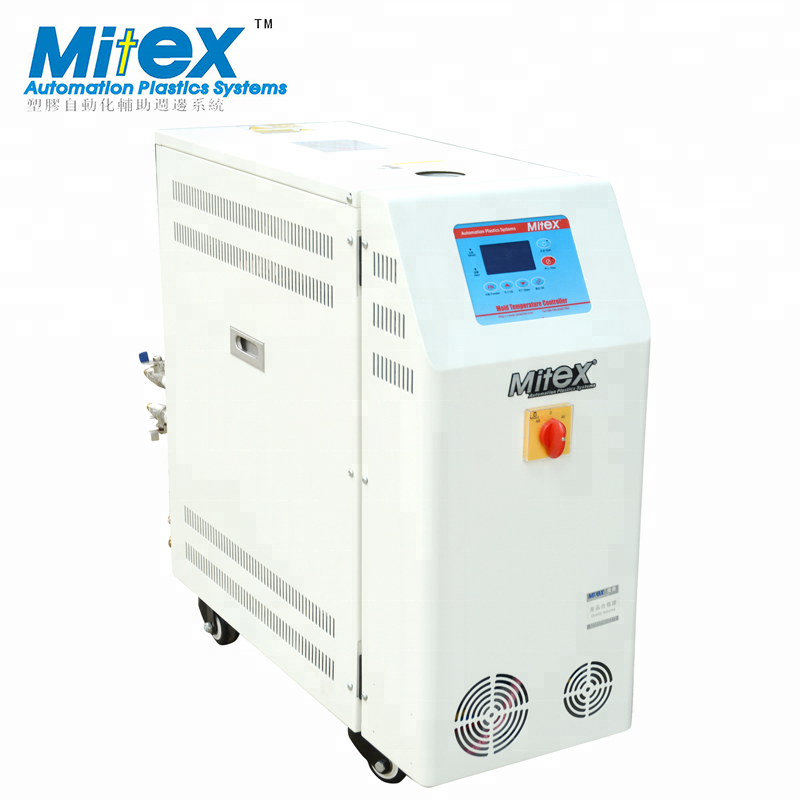

Oil type mold temperature controller heater for injection molding 391 Favorites

Product Categories: Oil Heater
Packaging Details:1. Standard wooden case packing; 2. Depend on the need of customers.	Trademark:Mitex
Certification: CE,
Payment Terms： L/C, T/T,
FOB: USD $1100/Set	HS Code: 8419899090
Loading Port：Shenzhen

Mitex Automation Machinery Co., Ltd.
Company type： Manufacturer	Credit：
Main products：Mold temperature controller, industrial chiller, hopper dryer, auto loader, dehumidifier, plastic crusher and mixer etc.

Contact Supplier

Message has been sent successfully.

Model		MTC
		2010G	2020G	2010S	2020S	2030S	2050S	2010G-TS
Medium		Thermal Oil
Max. working Temp.		200℃
Control Method		P.I.D control
Heater Capacity (KW）		9	12	9	12	18/24	36/48	9*2
Pump	Seal method	Mechancal method
	Motor capacity (KW)	0.38	1.5	0.75	1.5	2.1	3.75	0.75*2
	Max. pressure	0.38Mpa	0.45 Mpa	0.22Mpa	0.24Mpa	0.26Mpa	0.28Mpa	0.38Mpa
	Max Flow	56L/Min	110L/Min	165L/Min	235L/Min	315L/Min	385L/Min	56L/Min
Expansion tank capacity (L)		6	10	6	25	25	145	20
Cooling method		Indirect cooling
Cooling capacity (KW)		5			10		25	5
Circulatioin Line	Main PIpe	1 inch					1.5 inches	1 inch
	Branch pipe	3/8" 4 direction					1" 1 direction	3/8" 8 direction
Cooling Line		3/8"			3/4"			3/8"
Alarm		Phase Reverse, Medium shortage, Pump Overload, temp. upper and lower limit, overheat
Power supply		AC 380V, 3 phase, 50hz
Water pressure		0.1-0.3Mpa
Accessories		5 Meters Power cable
Dimensions (MM)		950310710	1100-340835	1100340835	1100340835	1100340835	17306701635	950310710
Net weight (kgs)		66	71.5	80	95	97	185	130
