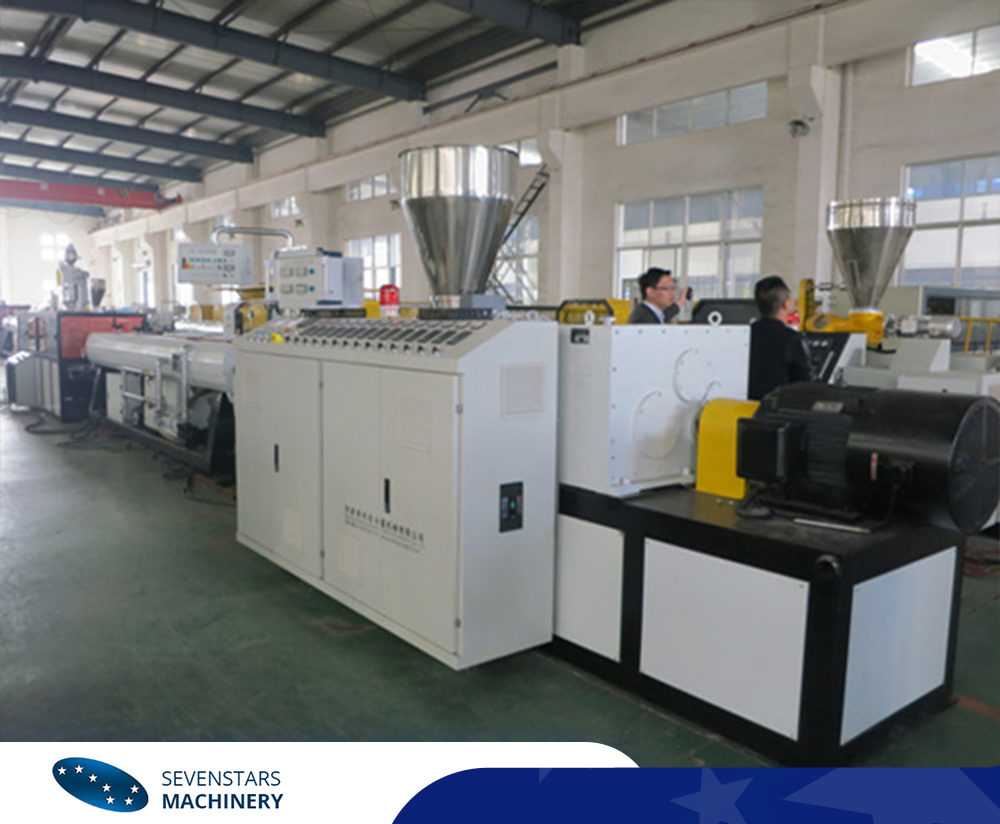

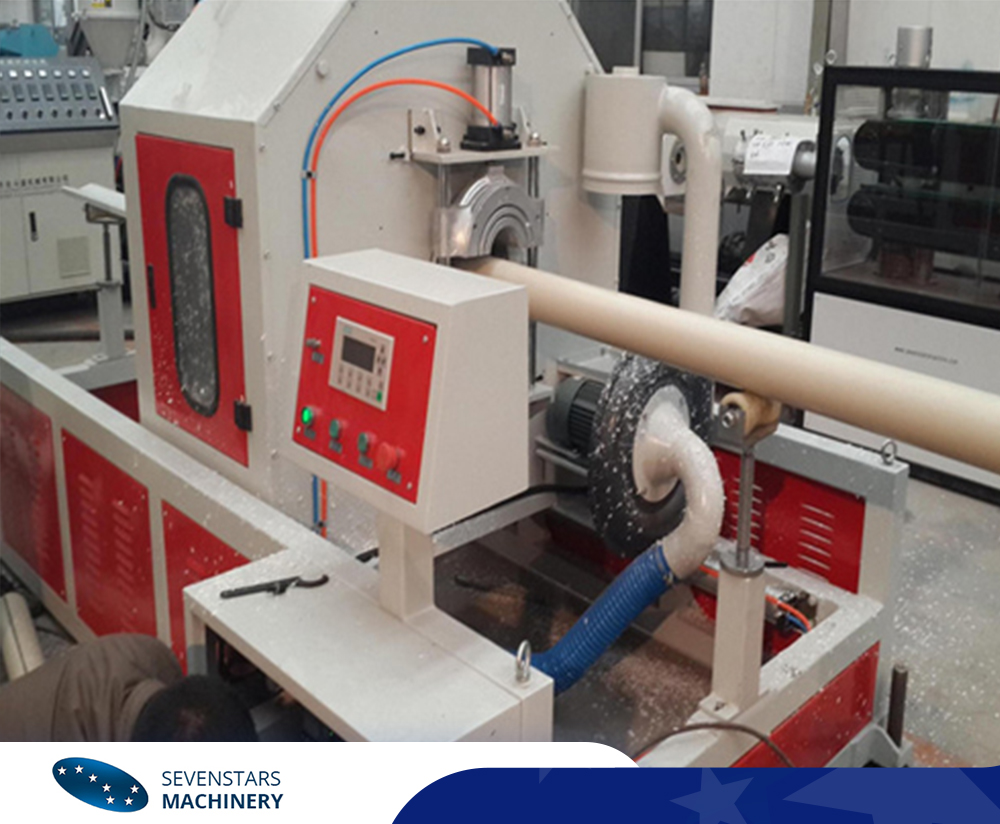

Ф20-Ф630,Ф 710-Ф1000 series PVC pipe extrusion line is mainly used in the manufacture of plastic PVC pipes with various diameters and wall thickness used in the industries such as agricultural and constructional plumbing, cable laying etc, this line is composed of conical twin screw extruder , vacuum calibration tank, haul-off, cutter and stake etc, the extruder and haul –off methods are two –claw, three-claw, for – claw, six-claw, eight –claw. Ten-claw, tweleve-claw etc, you may choose saw blade cutting type or planetary cutting type, it is additionally attached with length counter and intensifying device, this line with relable performance and high production efficiency, our company can also manufacture special pipe production lines, e.g. spiral silencing pipe and core foaming pipe according to your requirements.
mode | Pipe range(mm) | Extruder model | Max. output(m/min) | Max. speed(m/min) | Total power(KW) | Line length(mm) |
PVC-50x2 | 16-50 | SJSZ51/105 | 150 | 6m | 60kw | 20m |
PVC-63 | 16-63 | SJSZ65/132 | 250 | 6m | 85kw | 20m |
PVC-110 | 50-110 | SJSZ51/105 | 150 | 6m | 60kw | 24m |
PVC-160 | 63- 160 | SJSZ65/132 | 300 | 5m | 100kW | 24m |
PVC-250 | 110-250 | SJSZ80/156 | 400 | 3.5m | 120kw | 28m |
PVC-315 | 160-315 | SJSZ80/156 | 400 | 3m | 160kW | 28m |
PVC-450 | 250-450 | SJSZ92/188 | 700 | 1.5m | 200kw | 36m |
PVC-630 | 315-630 | SJSZ92/188 | 700 | 0.9m | 230kw | 36m |
