Fully-Automatic Big Volume Linear PET Stretch Bottle Blowing Machines.
SBL Series As a pioneer in manufacturing the full-automatic linear PET stretch blow molding machine especially for the big volume bottles, Demark adopts special design on the preheat construction and servo driving system to enable it big volume blow molding machine series save more than 50%power compared with similar machines by others.
SBL Series is available for blowing bottles for beverage, edible oil, catchup, cleaner, cosmetic and medical products with the volume between 5L and 20L
2 highlights:
Good stability: thanks to the excellent design concept and strict machining request as well as the outstanding electric collocation.
Competitive price: provide machine with good quality while lower price.
3 characters:
Demark Machinery bring in the method of rotary blowing mould machine to develop linear blowing mould machine for the first time among the domestic manufacturers, which has resolved the problems of bad stability and low efficiency of traditional linear blowing mould machine.
Jeepine Machinery is the first company that makes the single cavity capacity up to 600 bottles per hour (take 20L Oil bottle for example).
Peculiar heating system of light bar and light box with special design make it saving electric power by 50%.
5 innovations:
Blowing system: cooperate with the international leading research organizations; create the high-pressure integration valve group, the single cavity productive capacity is increased by 60%.

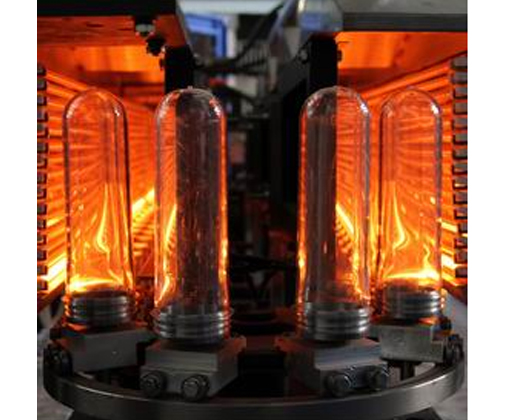

Heating system: patent light box provides constant and circulatory temperature(heater is fixed with short linkage 101mm, much shorter than 240mm), to save electric power by more than 50%;accurate control on the position and speed by servo, assure the action of the preheating-chain and manipulator in synchrony。
Stretching system: use linear sliding track framework instead of liner bearing, which offers an outstanding improvement of stability.
Main transmission system: adopt patent double strand roller chains technology, to assure the demands of stability and high speed.

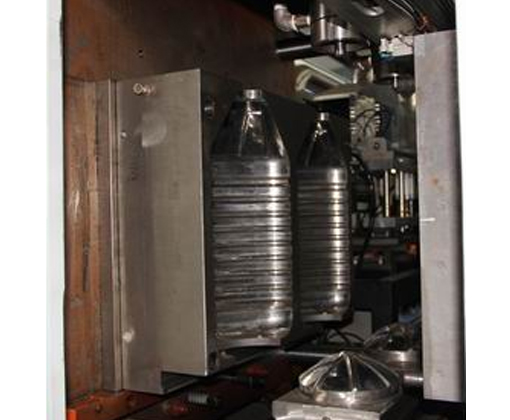

Hydraulic pressure close mould system: take the place of traditional pneumatic die set, with both sides pressure and four boards forming, assure the stability an the pass rate of 99.8%.

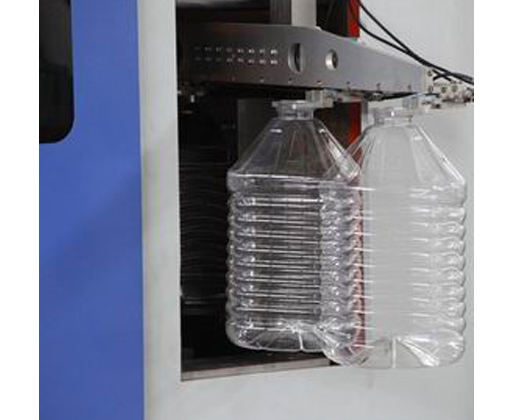

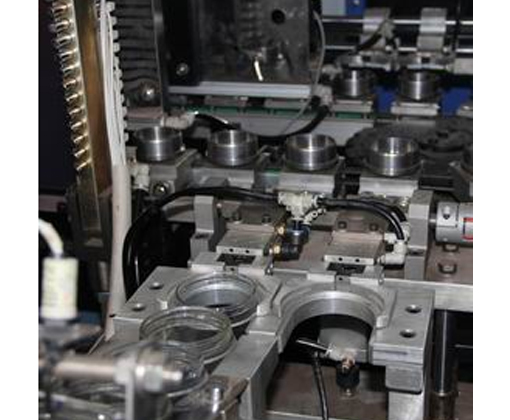

manipulator system:adopt servo controlling manipulator to keep the action of perform-sending and bottle-taking in synchrony, accurate and fast
Technical Parameter:
ITEM | Unit | SBL2/20L | SBL6/5L |
| Productive output | Bph | 600 | 4800 |
Forming Specification | Clamping power | Ton | 90 | 180 |
Clamping stroke | mm | 340 | 210 |
Stretching stroke | mm | 520 | 350 |
Bottom stroke | mm | 70 | 33 |
Cavity | pcs | 2 | 6 |
Cavity spacing | mm | 320 | 203.2 |
Bottle specification | Bottle volume | L | 20 | 5 |
Neck diameter | mm | 90 | 55 |
Body diameter | mm | 290 | 180 |
Body height | mm | 490 | 330 |
Electrical specification | Heating boxes | pcs | 4 | 8 |
Heating lamps | pcs | 60 | 72 |
Maximum heating power | KW | 120 | 180 |
Total power | KW | 125 | 202 |
Actual power consumption | KW | 45 | 110-140 |
Voltage / Hertz | V | 380(50Hz) | 380(50Hz) |
Air pressure specification | Working pressure | Kg/cm3 | 7~9 | 7~9 |
Low pressure flux | L/min | 2000 | 3000 |
Blowing pressure | Kg/cm3 | 25~40 | 40 |
High pressure flux | L/min | 10000 | 18000 |
Chilly water specification | Working pressure | Kg/cm3 | 5~6 | 4~6 |
Temperature | ℃ | 10 | 6~10 |
Chilling capacity | Kcal/hr | 39000 | 39000 |
Water flux | L/min | 150 | 150 |
Machine specification | Main Machine | M | 2.6X1.3X2.2 | 8.1X4.1X2.6 |
Oven | M | 3.8X1.6X2.2 | 4.5X1.6X2 |
Loader | M | 2.5X1.2X2.2 | 4.1X4X2 |
Weight | Ton | 5T | 20 |
