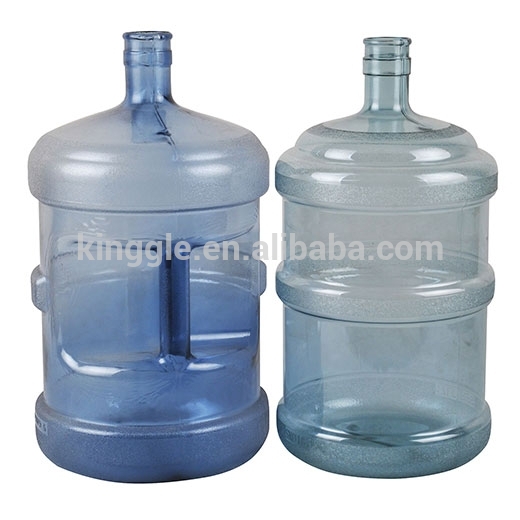

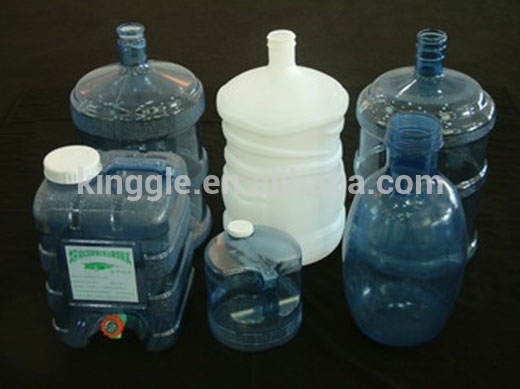

PXB 82 machine is special machine can make 3-5 gallon pc bottles .
TECHNICAL SPECIFICATION |
Specificaion |
| PXB82PC |
Material | PC |
Max container capacity | L | 20 |
Output(dry Cycle) | PC/HR | 350 |
Dimension(L×W×H) | M | 5.6×2.7×4.5 |
Total weight | T | 11 |
Clamping unit |
Clamping force | KN | 190 |
Platen opening stroke | MM | 250-800 |
Platen size | MM | 800×800 |
Max mould size(W×H) | MM | 650×800 |
Mould thickmiss | MM | 250-420 |
Power |
|
|
Total power | KW | 83 |
Max dirve | KW | 45 |
Fan power for screw | KW | 0.9 |
Oil pump power | KW | 45 |
Air pressure | MPA | 1 |
Air consumption | M3/MIN | 0.6-0.8 |
Average energy consumption | KW | 45 |
Extruder unit |
|
|
Screw diameter | MM | 82 |
Screw L/D ratio | L/D | 25/30 |
Output of HDPE | KG/H | 90 |
Number of heating zone | ZONE | 5 |
Extruder heating power | KW | 30 |
Extruder driving power | KW | 45 |
Die-head |
|
|
Number of heating zone | ZONE | 3 |
Power of die heating | KW | 8.7 |
Max die pin diameter | MM | 130 |
Accumulator capacity | MM | 1.85 |
Machine main part brand:
Our certification:
Packaging & Shipping
Our Services
The warranty period for Kinggle machine is one year with a life long maintenance. If the user
requires special quality guarantee, other stipulated warranty period may be made after mutual
agreement.
1. Reply the email and take action in 24 hours;
2. 100% Quality inspection before the shipment;
3. Can trainning clients operator for free in seller`s factory
4. Engineer overseas is avilable
5. Blowing mould and injection mould made orginal
6. Auxiliary machines for complate line.
7.Custimized design as requirements.
8.Introduce our engineer come to customer’s factory working!
