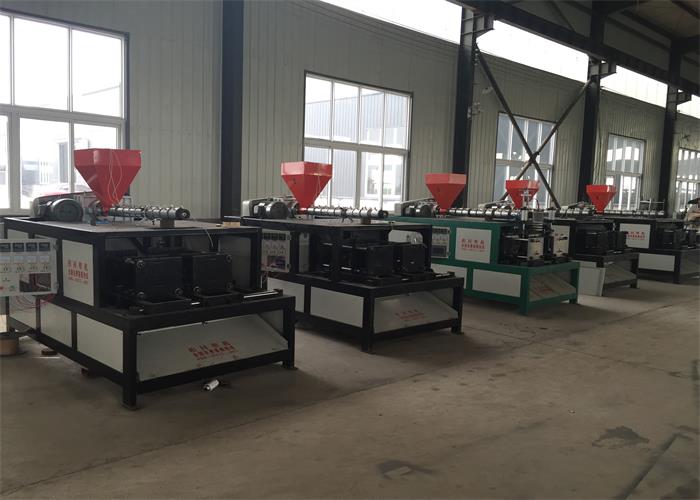

This model is applied to PP, PE raw material plastic products.mainly used for fruit bottles、pesticide bottle、drug bottles、cosmetics bottle、oil bottle etc hollow plastic bottles. The bottle size range:0.5L-5L.
This machine adopted famous reducer and variable frequency, Japan Omron proximity switch.

The main technical parameters
Model | BT 280 | Maximum capacity | 5L |
Screw diameter | 65mm (38CrMoAla) | Screw heating power | 12kw |
Oil hydraulic pump power | 5.5kw | Main motor power | 11kw |
Length to diameter ration(L/D) | 25:1 | Max. production diameter | 180mm |
Economic speed | 130pcs/h | platen max. open width | 500mm |
Mold open width | 230mm | platen open range | 160-500 |
Mold size | 325x350≥80 | Platen side | 460x350x50 |
Thickness of mold | 160-280 | Air blowing way | Blowing up on bottle |
Air consumption | 0.5-0.6m3min | Raw material | PE/PP |
Cropping type | Hot cutting | Clamping force | 50KN |
Speed adjust type | Frequency control | Operating system | PLC |
Machine dimensions | 3400x1800x2100 |
|
|
