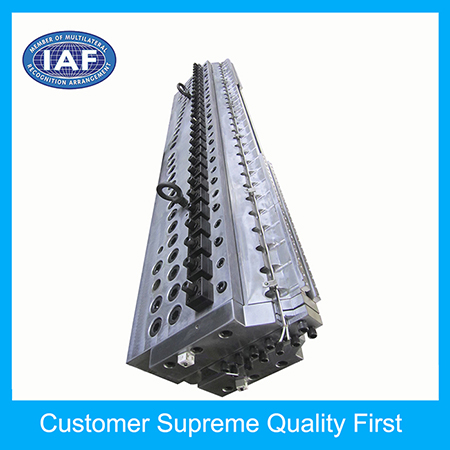

Offer 5-15mm thickness PP/PE panel plastic extrusion die
1. Hangers-style structure.
2. With the restrictor bar of 90 degrees, which can meet the demand of different thickness products, the upper lips and the lower lips can be changed, and regulated which can meet the demand of different specifications.
3. All sides of the mould plated chromium and used high-strength bolts with 12.9 grades.
4. The heater make of nice stainless can be control heating.
5. Steady production, the structure is simple, easy to remove and cleaning.
6. Production of thickness: 6mm-40mm.
7. Suitable for: PE, PP, PMMA, PS, PVC materials etc...
8. Die width: 600-3500mm.
Item | Detailed Introduction |
| Die Material | 45#, 40Cr, P20 or as customer's requirement. |
Die Width | 1400mm |
Production Thickness | φ0.5-φ1mm |
Use | PVC material |
Surface Treament | Mirror polishing, Electroplating |
Bolts | High-strength 12.9 grades |
Heat Control | Heater |
Heater Zone | 7 zones |
Die Feature | Reasonable structure design, good surface treatment,long mould life, shorter deliver time, the best price. |
Process Equipment | CNC, EDM,Drill... |
Software | AutoCAD, UG, Pro/E,Cimatron... |
Provides Service | Provides detailed product introduction and overall quotation service. |
Design Team | We have a professional design team. Provides design plans as clients' request. |
Professional Factory | We are factory, specializing in manufacturing plastic exrusion die. |
