Device Name | Technical parameters Name | XC-160 | XC-240 | Remark |
Vacuum forming table | Tray length (L) Material: stainless steel 3Cr17 | 4000 mm | 5000 mm |
|
Quality vacuum pump power and the number of | 4kw×1 2.2kw×1 | 5.5kw×1 4kw×1 |
|
Cooling / vacuum number of joints | 16/16 | 30/30 |
|
Move back and forth from the shaping table | 500 mm | 500 mm |
|
The center high lift way Landing distance | 4 dedicated lifts ± 50 mm | 4 dedicated lifts ± 50 mm |
|
The tray horizontal mobile way Lateral movement distance | Dedicated mobile guide ± 30 mm | Dedicated mobile guide ± 30 mm |
|
Die mounting center distance of the two T-slots | 360 mm | 360 mm |
|
Vortex air pump drying device | 0.75 kw | 0.75 kw |
|
|
Tractor | Effective clamping length (L) | 1500 mm | 1900 mm |
|
Line speed | 0~4 m/min | 0~4 m/min |
|
Way of contacting | Pneumatic crank | Pneumatic crank |
|
Speed mode | VVVF | VVVF |
|
Motor Power | 2.2 kw | 4 kw |
|
The glue block size (mm) | 160×35×25 | 240×45×25 |
|
|

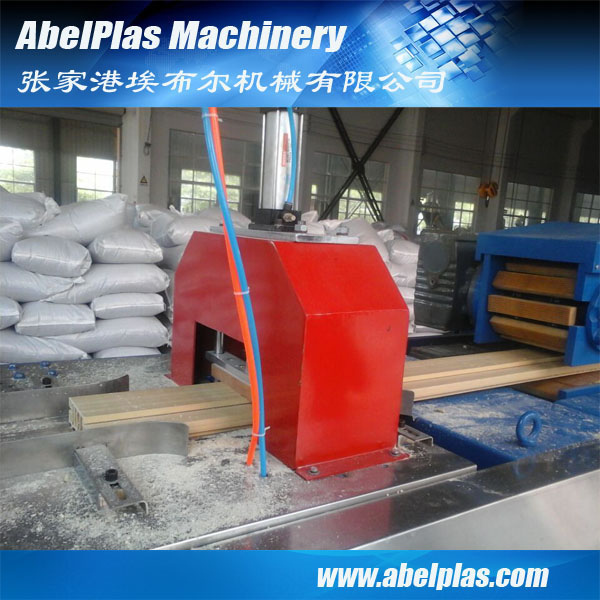

Cutting machine | Cutting products Dimensions (mm) | 200×50 | 300×80 |
|
Cutting motor power | 1.1 kw | 1.1 kw |
|
Saw blade diameter | 305 mm | 405 mm |
|
|
|
|
|
|
