General description:

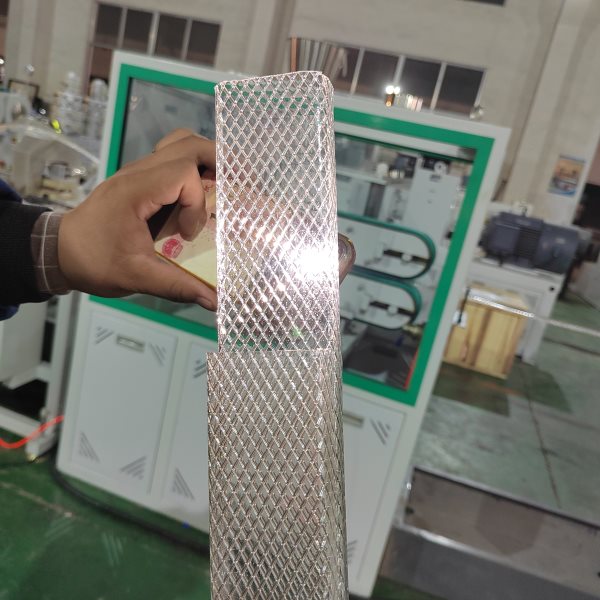

1、Product size: according to confirmed drawing
2、Main Material:PC granules
3、Extruder type: SJ65/30 single screw extruder
4、Output capacity: 80-100kg/h
5、Production speed: 0.3-5meter/min
6、Workshop for whole line: 14m x 3m x 3.5m
7、Electric power supply: 3phase, 380V;50Hz
8、Cooling water: 10-15℃, 5-6m3/h
9、Compress air: 5Nm3/h
10、Total power:40kw,actual power consumption: 30kw
2.Application:
To convey the PC material to hopper, after being dried by hopper dryer, extruding PC profile by extruder and mould, then cooled by water, pulled and final cut in length
3.Equipment components:
(1)Automatic vacuum loader
(2)Hopper dryer

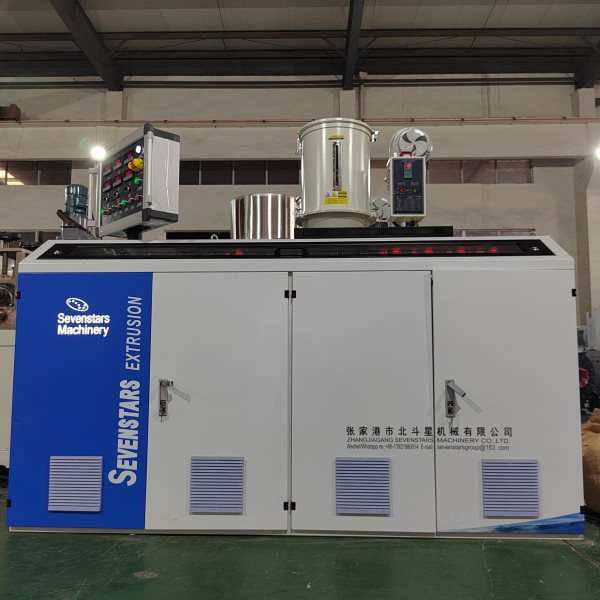

(3)SJ50/30 single screw extruder

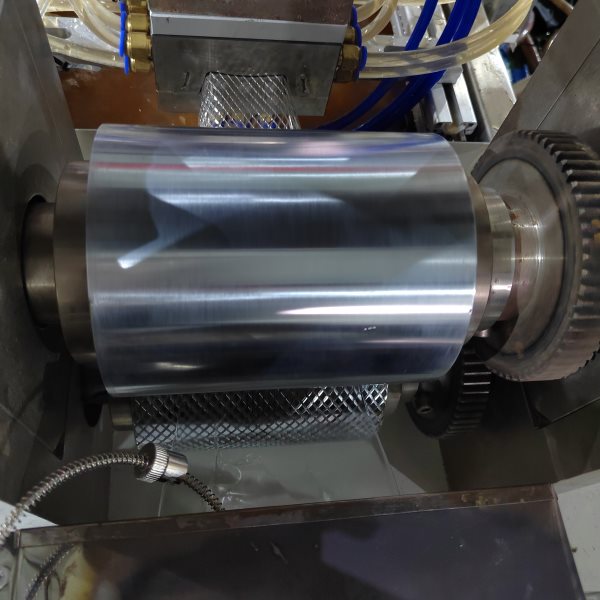

(4)online embossing machine

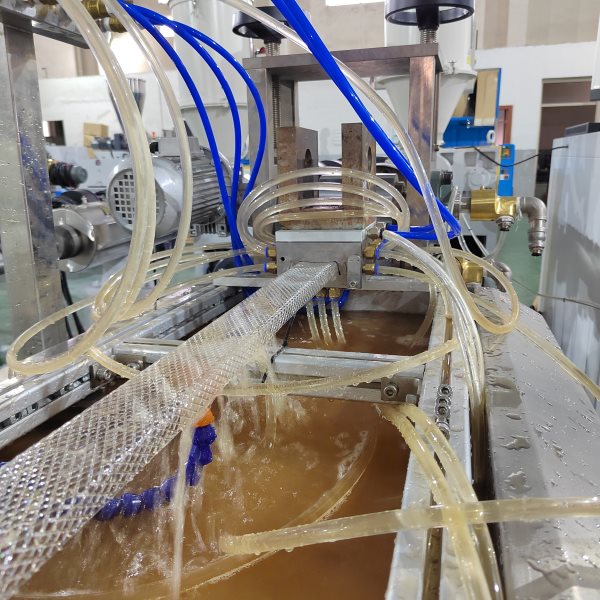

(5)Vacuum cooling calibrator
(6)Hauling off machine
(7)Precision Saw Cutting Machine and Rack
(8)Mold for PC profile
