Home > Product Categories > LLDPE/HDPE/ LDPE ABA Double Screw Three-layer C-extrusion Film Blowing Machine

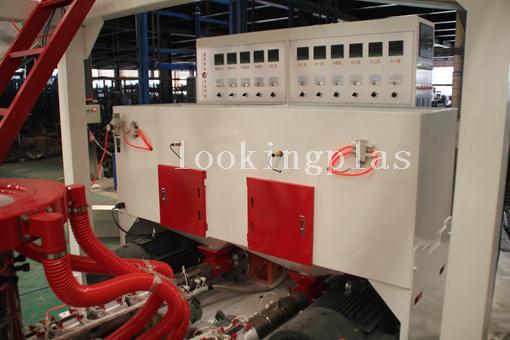

LLDPE/HDPE/ LDPE ABA Double Screw Three-layer C-extrusion Film Blowing Machine Favorites

Raw material:LLPE/HDPE/LDPE Place of Origin:Langfang
Condition: New Loading Port:Tianjin Port,China
Product description:1. High speed double screw ABA three layers co-extrusion 2. Accurate extruder CNC control system base on independent R&D technology property 3. Equipped specialize pocking mark roller 4. Full-automatic winder device improves producticity
Langfang Zhongfeng Mechanical Technology Co., Ltd.
Company type: Manufacturer Credit:
Main products:Film Blowing Machine & Bag Making Machine
Get Quotation

Details Configuration

i.Extruder

Extruder Host Motor

EURA,Three Phase Induction Motor

Host Frequency Converter

Two Piece, EURA,15KW

PLC Operation System

XINJE, XC3-24T-E, Touch Screen

Gear Wheel Lubrication Method

forced Oil Circulation lubrication

Gear Wheel Cooling Method

Forced Water Circulation cooling

Barrel Screw Model

SJ-55/28

Cooling Blower of Screw Barrel

Three-phase Centrifugal Fan

Heating Coil of Screw Barrel

Steel Less

Charging Type

Manual Work

Feeding System

CNC Control System

Extruder Head Flange

Embedded

Number of Heating Zones

Screw Temperature 7 zones

Die Head

Low Pressure Die Head

Die head Material

Alloy Steel,Forging and Heat Treating

Die Head Heater

Double Layer Stainless Steel Heater

Air Ring Type

Single Lips Air Ring

Air Ring Material

Cast Aluminum

Blowing Tube

Six Piece ,PVC Material

Air Blowing Device

High Pressure Blower 5kw

ii. Traction Equipment

Traction Motor

Made In China,or Designated Brands

Traction Frequency Converter

Made In China or Designated Brands

Air Cylinder

SMC

Traction Frame

Stationary Type

Foam Gusset

Paling Type

Foam Stabilizing frame

Shaft Board

iii Winding Part

Winder Mode

Friction Type Manual Single Winder

Winder Motor

Made In China or Designated Brands

Winder Frequency Converter

Made In China or Designated Brands

Cutting Device

Semi-Automatic


LF-ABA55 LF-ABA60 LF-ABA65
Suitable Material LLDPE/LDPE/HDPE LLDPE/LDPE/HDPE LLDPE/LDPE/HDPE
Screw Diameter(mm) 55 60 65
Max Screw Speed(r/min) 15-150 80 80
Traction Shaft Length(mm) 450/650/800 1000/1300/1500 1000/1300/1500
Max Film Width (mm) 370/570/700 900/1200/1400 900/1200/1400
Film Thickness(mm) 0.01-0.1 0.01-0.1 0.01-0.1
Max Extrusion(kg/hr) 75 85 115
Ratio of Length to Diameter(mm) 31:1 33:1 32:1
Die head diameter 290/390 290/320 290/320
Extruder power(kw) 11x2 or 15x2 15x2 18.5x2 or 22x2
Traction Motor Power(kw) 2.2 2.2 or 3 2.2 or 3
Heating Device Power(kw) 16.2 16.2 27
Winder Motor Power(kw) 2.2 2.2 2.2
CNC Accuracy 1000g/+1.5g 1000g/+1.5g 1000g/+1.5g
Max winding diameter(mm) 1000 1000 1000
Overall Dimensions(mm) 5700 x 2680 x 6200 6000 x 3765 x 6200 6000 x 3765 x 6200
Total Weight(kg) 5000 5400 5400
