Home > Product Categories > Double channel four axis unwinding cold cutting full automatic punching bag making machine

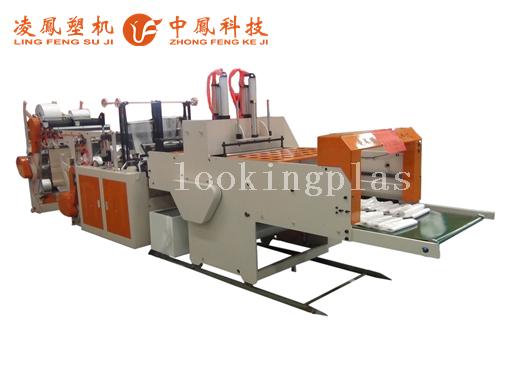

Double channel four axis unwinding cold cutting full automatic punching bag making machine Favorites

Raw material:LLPE/HDPE/LDPE Place of Origin:Langfang
Condition: New Loading Port:Tianjin Port,China

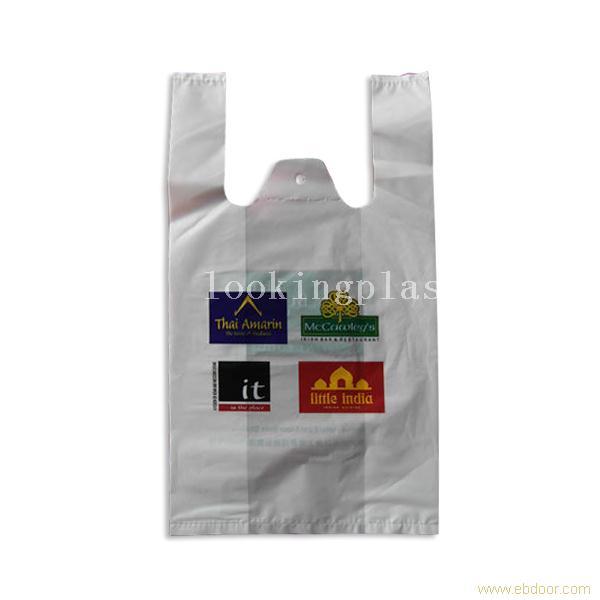

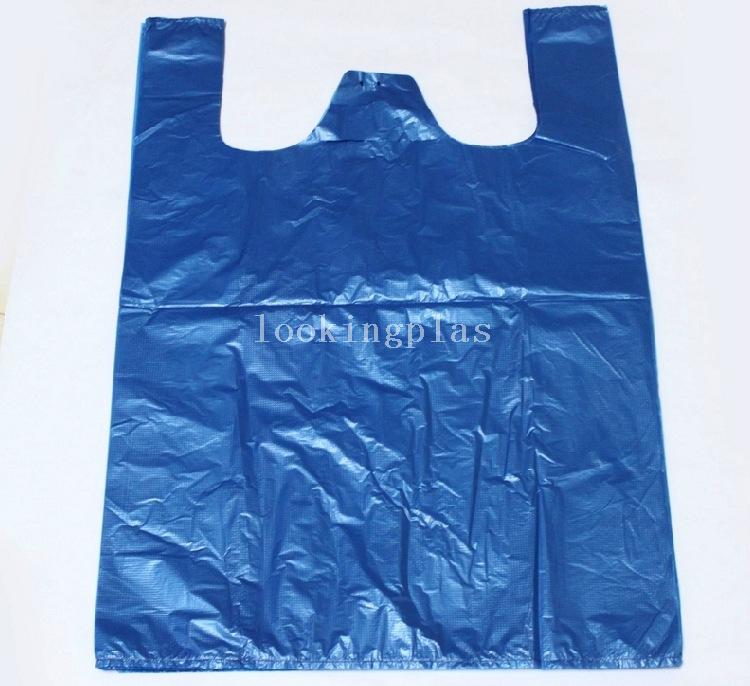

Product description:Double channel four axis unwinding feeding device greatly improved productivity; Human touch screen, simple operation. Bag length & speed can be changed easily from touch screen.T-shirt bag making machine,vest bag making machine,bag making machine,garbage bag making machine,shopping bag making machine
Langfang Zhongfeng Mechanical Technology Co., Ltd.
Company type: Manufacturer Credit:
Main products:Film Blowing Machine & Bag Making Machine
Get Quotation

Feature and advantage

1. Human touch screen, simple operation. Bag length & speed can be changed easily from touch screen.

2. Adopted our company’s patent technology lift roll device and four-axis and two channels feeding together, greatly increase productivity.

3. Unwind Stand equipped with inverter system for jumbo reels reduced the time and the number of employees of change roller.

4. Equipped with specialized pneumatic Expandable Scroll fastens the film roller, easy operation

5. Servo control step setting length system reduces the sealing-cutting dimensions errors during high-speed production and electric consumption.

6. Cold cutter and sealing knife "turnover" device, easy for clean and maintenance, also ensure the safety.

7. Equipped with circulatory auto-lubrication system service for drive train of cutting and sealing

8. The machine adopted plugging type IC circuit auto-controlled system for easy replacement.

9. Servo-motor accurately control Robot hand moment position

10. In-line automatic punching machine use air pressure to push oil hydraulics without noise


小窗口播放

LF-4DP-300x2
The max width of the bag (mm) 300
The max length of the bag (mm) 650
Bag making speed (pcs/min) 100-260
Film thickness (mm) 0.02-0.08
Total power (KW) 18.64
Gas consumption (m3/min) 0.6
Bag making roll quantity (roll) 2
Over Dimensions(mm) 5370x1340x1890
Weight (kg) 2261
Main inverter power (kw) 1.5
Conveyer inverter power (kw) 4x0.75
Inverter quantity (sets) 5
Servo motor power (kw) 2.6
Servo motor quantity (sets) 3
Pressure Cylinder Model KPB-80-165-20-3T
Pressure Cylinder Quantity 2
Work voltage (V) AC 220V
