Home > Product Categories > Common Type Double Channel Auotmatic Punching T-shirt Bag Making Machine

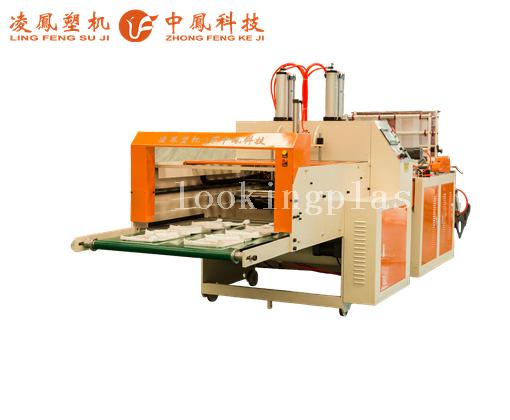

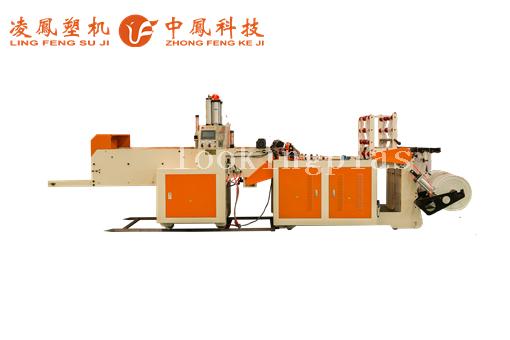

Common Type Double Channel Auotmatic Punching T-shirt Bag Making Machine Favorites

Raw material:LLDPE/HDPE/LDPE Place of Origin:Langfang
Condition: New Loading Port:Tianjin Port,China
Product description:1. Servo System Accurately Control Robot Hand Movement 2. Servo System Accurately Control Feeding Speed 3. Equipped With Full-automatic Punching Machine 4. Self-lubrication System for Drive train,T-shirt bag making machine,Vest bag making machine,Plastic bag making machine,shopping bag making machine,supermarket bag making machine
Langfang Zhongfeng Mechanical Technology Co., Ltd.
Company type: Manufacturer Credit:
Main products:Film Blowing Machine & Bag Making Machine
Get Quotation

Feature and advantage

1. Human touch screen, simple operation. Bag length & speed can be changed easily from touch screen.

2. Adopted standard unwind stand, easy operation and equipped with inverter system for jumbo reels reduced the time and the number of employees of change roller.

3. Servo control step setting length system reduces the sealing-cutting dimensions errors during high-speed production and electric consumption.

4. Hot cutter and hot sealing knife heating together, easy controlled and accurately adjusted

5. Cutter and sealing knife "turnover" device, easy for clean and maintenance, also ensure the safety.

6. Equipped with circulatory auto-lubrication system service for drive train of cutting and sealing

7. The machine adopted plugging type IC circuit auto-controlled system for easy replacement.

小窗口播放

DP-300x2 DP-350x2 DP-450x2
The max width of the bag (mm) 300 350 450
The max length of the bag (mm) 650 650 750
Bag making speed (pcs/min) 100-260 100-260 100-260
Film thickness (mm) 0.02-0.08 0.02-0.08 0.02-0.08
Total power (KW) 17.1 17.1 18.9
Gas consumption (m3/min) 0.6 0.6 0.7
Bag making roll quantity (roll) 2 2 2
Over Dimensions(mm) 5650×1340×1890 5650x1470x1890 5840x1670x1890
Weight (kg) 1898 2012 2586
Main inverter power (kw) 1.5 1.5 1.5
Conveyer inverter power (kw) 2x0.75 2x0.75 2x0.75
Inverter quantity (sets) 3 3 3
Servo motor power (kw) 2.6 2.6 2.6
Servo motor quantity (sets) 3 3 3
Pressure Cylinder Model KPB-80-165-20-5T KPB-80-165-20-5T KPB-80-165-20-5T
Pressure Cylinder Quantity 2 2 2
Work voltage (V) AC 220V AC 220V AC 220V
