Home > Product Categories > Common Type Single Channel Auotmatic Punching T-shirt Bag Making Machine

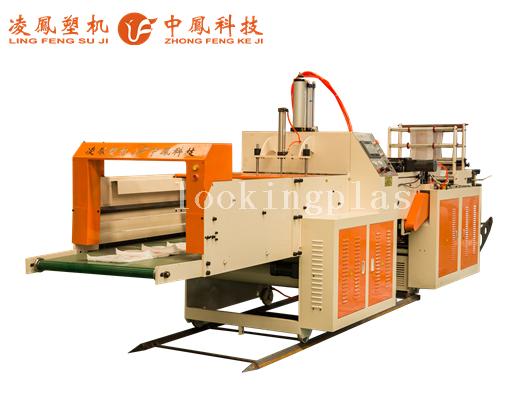

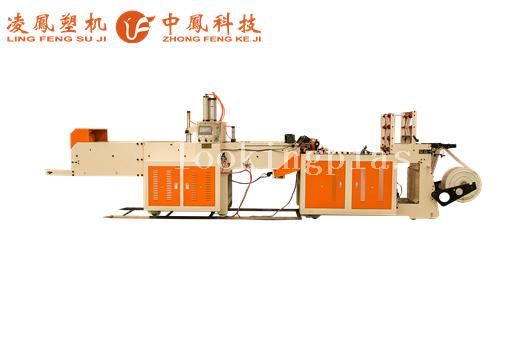

Common Type Single Channel Auotmatic Punching T-shirt Bag Making Machine Favorites

Raw material:LLPE/HDPE/LDPE Place of Origin:Langfang
Condition: New Loading Port:Tianjin Port,China
Product description:1. Servo System Accurately Control Robot Hand Movement 2. Servo System Accurately Control Feeding Speed 3. Equipped With Full-automatic Punching Machine 4. Self-lubrication System for Drive train
Langfang Zhongfeng Mechanical Technology Co., Ltd.
Company type: Manufacturer Credit:
Main products:Film Blowing Machine & Bag Making Machine
Get Quotation

Details Configuration

Fuselage for making bag

Charging Type

Semi-automatic, Pneumatic

Charging Cylinder

One Piece, AIRTAC 4HV230-08

Charging Shaft

Cold-drawing Steel

Conveyer Motor

One Piece, WUHU DELI

Conveyer Inverter

One Piece, TECO

Conveyer Roller

Two Piece, Specialized Rubber

PLC Operation System

DECHENG DC300A Touch Screen

Feeding Roller

Two Piece, Specialized Rubber

Feeding Servo Motor

One Piece, DECHENG

Feeding Servo Driver

One Piece, DECHENG

Host Motor

One Piece, WUHU DELI

Host Motor Inverter

One Piece, TECO

Photoelectric

JULONG Z3N-T22-2

Heat Sealing Knife

Alloy Copper

Heat Cutter

Alloy Steel

Cutting&Seeling Heating Method

Integrate heating

Temperature Controller

SHANGHAI YATAI

Static Elimination Device

One Static Chamber&Two Static Bar

Discharging Method

Automatic Robot Hand

Automatic Punching machine

Cross-flow Fan

CHAOYU, Made in China

Bag Output Orderliness Device

Soft Rubber Whip

Bag Transmitting&Stacking Device

Automatic Robot Hand

Robot Hand Servo Motor

One Piece, DECHENG

Robot Hand Open-closed

Pneumatic

Punching Pressure Cylinder

One Piece, Made In Taiwan

Punching Cutter

Alloy Steel

Punching Subplate

Auto-transpositionNylon Material

Bag Output Convey Belt

PVC Material

小窗口播放

SP-550 SP-650 SP-1000
The max width of the bag (mm) 550 650 1000
The max length of the bag (mm) 1000 1000 1000
Bag making speed (pcs/min) 100-260 100-260 100-260
Film thickness (mm) 0.02-0.08 0.02-0.08 0.02-0.08
Total power (KW) 11.97 11.97 12.9
Gas consumption (m3/min) 0.6 0.6 0.7
Bag making roll quantity (roll) 1 1 1
Over Dimensions(mm) 5650x1240x1890 5650x1340x1890 6600x1670x1890
Weight (kg) 2004 2132 2432
Main inverter power (kw) 1.5 1.5 1.5
Conveyer inverter power (kw) 0.75 0.75 1.5
Inverter quantity (sets) 2 2 2
Servo motor power (kw) 3.0&2.6 3.0&2.6 5.0&2.6
Servo motor quantity (sets) 2 2 2
Pressure Cylinder Model KPB-80-165-20-5T KPB-80-165-20-5T KPB-80-165-20-5T
Pressure Cylinder Quantity 1 1 2
Work voltage (V) AC 220 AC 220V AC 220
