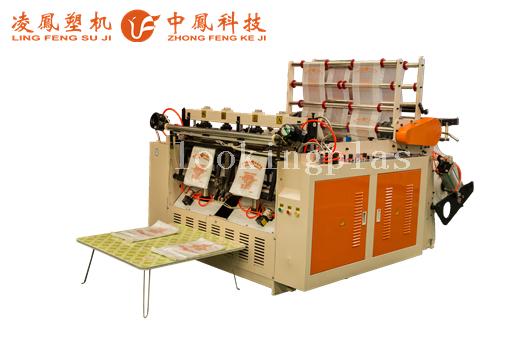

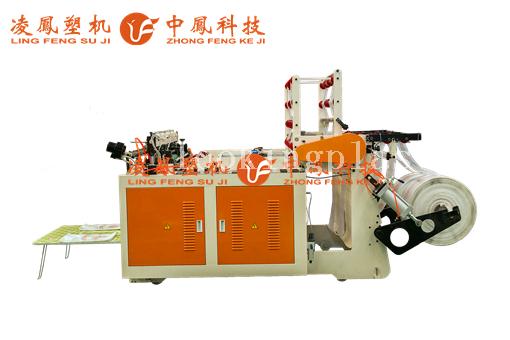

Feature and advantage
1. Human touch screen, simple operation. Bag length & speed can be changed easily from touch screen.
2. Adopted standard unwind stand, easy operation and equipped with inverter system for jumbo reels reduced the time and the number of employees of change roller.
3. Servo control step setting length system reduces the sealing-cutting dimensions errors during high-speed production and electric consumption.
4. Hot cutter and hot sealing knife heating together, easy controlled and accurately adjusted
5. Cutter and sealing knife "turnover" device, easy for clean and maintenance, also ensure the safety.
6. Equipped with circulatory auto-lubrication system service for drive train of cutting and sealing
7. The machine adopted plugging type IC circuit auto-controlled system for easy replacement.
8. Tipping board discharge type is accuracy controlled, neatly and fast.
Technology Parameter
Model No. | LF-DT-300x2 | LF-DT-350x2 | LF-DT-450x2 |
The max width of the bag(mm) | 300 | 350 | 450 |
The max length of the bag(mm) | 650 | 650 | 750 |
Bag making speed(pcs/min) | 100-260 | 100-260 | 100-260 |
Film thickness(mm) | 0.02-0.08 | 0.02-0.08 | 0.02-0.08 |
Total power(KW) | 13.43 | 13.43 | 15.2 |
Gas consumption(m3/min) | 0.5 | 0.5 | 0.6 |
Bag making roll quantity(roll) | 2 | 2 | 2 |
Dimensions(mm) | 2605×1240×1610 | 2605x1340x1610 | 2605x1540x1610 |
Weight(kg) | 920 | 1030 | 1070 |
Main inverter power(kw) | 1.5 | 1.5 | 1.5 |
Inverter quantity(sets) | 3 | 3 | 3 |
Servo motor quantity(sets) | 2 | 2 | 2 |
Work voltage(V) | AC 220V | AC 220V | AC 220V |
