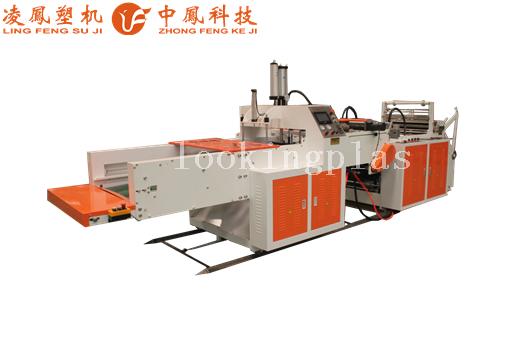

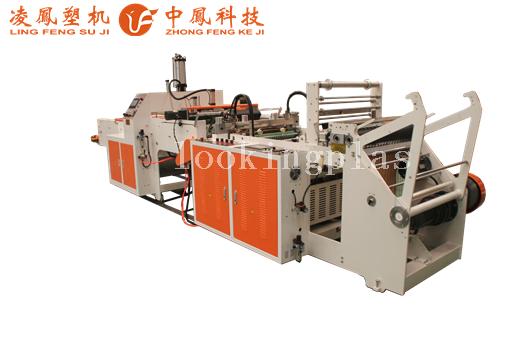

High Speed Single Channel Automatic Punching T-shirt Bag Making Machine Favorites

Raw material:LLDPE/HDPE/LDPE Place of Origin:Langfang
Condition: New Loading Port:Tianjin Port, China
Product description:1. Specialized Conveyor Device without Film Stretching 2. Heat Cutter Heating Independent 3. Self-lubrication System for Drive train 4. Servo System Accurately Control Feeding Speed 5. Equipped With Full-automatic Punching Machine
Langfang Zhongfeng Mechanical Technology Co., Ltd.
Company type: Manufacturer Credit:
Main products:Film Blowing Machine & Bag Making Machine
Get Quotation

Details Configuration


Fuselage for making bag

Charging Type

Semi-automatic, Electric

Charging Motor

One Piece, WUHUDELI

Charging Shaft

Special Expanded Shaft

Conveyer Motor

One Piece, WUHU DELI,

Conveyer Roller

Two Piece, Special Rubber

PLC Operation System

DECHENG DC300A Touch Screen

Feeding Roller

Two Piece, Special Rubber

Feeding Servo Motor

One Piece, DECHENG

Feeding Servo Driver

One Piece, DECHENG

Host Motor

One Piece, WUHU DELI

Host Motor Inverter

One Piece, TECO

Photoelectric

JULONGZ3N-T22-2

Heat Sealing Knife

Alloy Copper

Heat Cutter

Alloy Steel

Sealing&Cutting Heating Method

Separately Independent Heating

Temperature Controller

SHANGHAI YATAI

Static Elimination Device

One Static Chamber,Two Static Bars

Discharging Method

Automatic Robot Hand


Automatic Punching machine

Cross-flow Fan

CHAOYU, Made in China

Bag Output Orderliness Device

Soft Rubber Whip

Bag Transferer&Folding Device

Automatic Robot

Robot Hand Open-closed ways

Pneumatic

Output Convey Belt

PVC Plastic

Punching Pressure Cylinder

One Piece, Made In Taiwan

Punching Cutter

Alloy Steel

Punching Subplate

Auto-transpositionNylon

Robot Hand Servo Motor

One Piece, DECHENG

Robot Hand Servo Driver

One Piece, DECHENG

小窗口播放

小窗口播放

HSFP-550 HSFP-650 HSFP-1000
The max width of the bag (mm) 550 650 1000
The max length of the bag (mm) 320-1000 320-1000 600-1500
Bag making speed (pcs/min) 100-300 100-300 80-200
Film thickness (mm) 0.02-0.08 0.02-0.08 0.02-0.08
Total power (KW) 10.71/2.8 12.11/2.9 17.07/4.2
Gas consumption (m3/min) 0.6 0.6 0.7
Bag making roll quantity (roll) 1 1 1
Over Dimensions(mm) 6500x1350x1950 6500X1450X1950 7130x1690x1950
Weight (kg) 2352 2480 2748
Main inverter power (kw) 1.5 1.5 1.5
Conveyer inverter power (kw) 2x0.75 2x0.75 2x0.75
Inverter quantity (sets) 3 3 3
Servo motor power (kw) 3.0 4.4 4.4
Servo motor quantity (sets) 2 2 2
Pressure Cylinder Model KPB-80-165-20-5T KPB-80-165-20-5T KPB-80-165-5T
Pressure Cylinder Quantity 1 1 2
Work voltage (V) AV 220 AC 380 AV 380
